About this listing

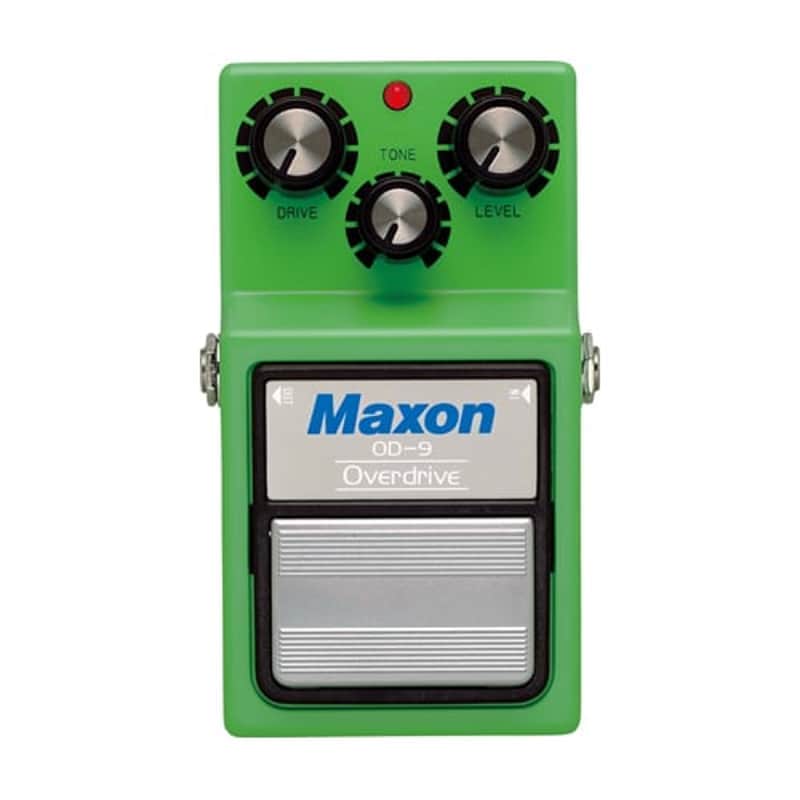

While the OD808 may have been the first overdrive circuit of its kind, it was the OD-9 that cemented this sound in the history of Rock & Roll guitar.The OD-9 features Mechanical True Bypass switching via a Fujisoku 4PDT switch – input signal is sent to ground when bypassed.SpecsInput Impedance: 500K OhmsInput Jack: 1/4 inch standard phone jackOutput Impedance: 10K Ohms or lessOutput Jack: 1/4 inch standard phone jackOutputs: 1Equivalent Input Noise: -114 dB or less (input shorted IHF-A weighted)Maximum Output Level: 0 dBmMaximum Gain: +40 dB (at 1.5 KHz)Controls: Drive, Tone, LevelSwitch: Normal/Effect (true bypass configuration)Power Supply: 9V Manganese dry cell battery (6F22) or special AC adaptorPower Voltage: DC9 V (Battery) / DC10 V (AC-adaptor)Current Consumption: 6 mA (9 V) / 7 mA (10 V)Dimensions (whole): 74 mm (W) x 124 mm (D) x 54 mm (H)Weight: 580 gAccessories: 9V Manganese dry cell battery (S-006P) x 1Warranty Card: x 1User's Manual: x 1
Price$179
+ $15.99 Shipping
