About this listing

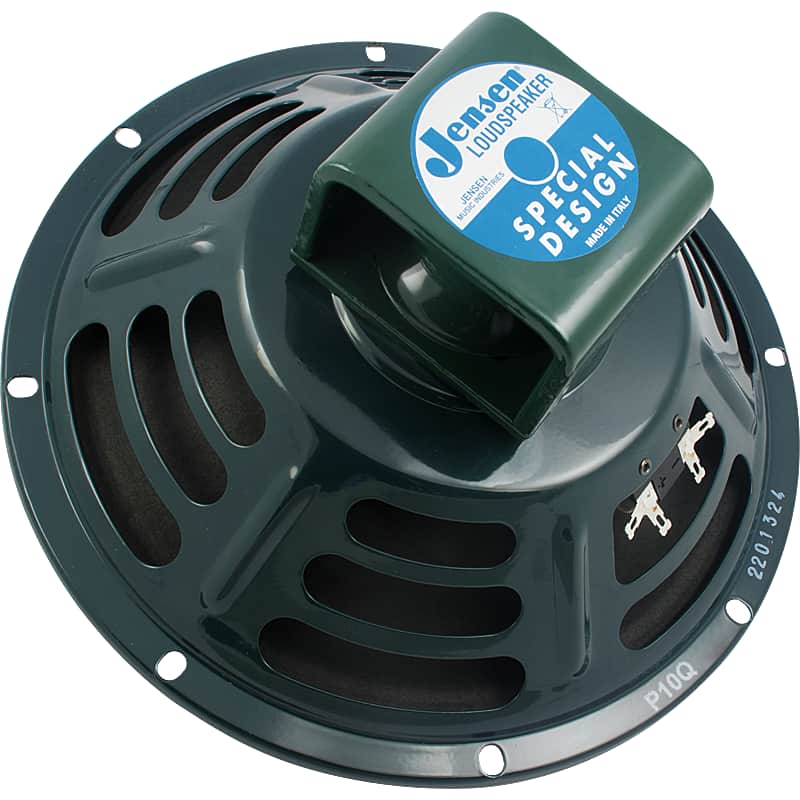

The high power 10” Alnico in the Vintage Series, the P10Q was used in a handful of beautifully sounding amps such as the Tweed Super, Brownface Super, and others. This speaks to the fierce tone of the P10Q, capable of great clarity, detailed tone with excellent trebles, and well supported by a solid mid and bass foundation.
Guitarist Description: Warm tone with some bite in the mid frequencies which translates into a fierce response to overdrive distortion.
Lows: Loose
Mids: Firm
Highs: Bright
Overdrive: Crunchy
Product MeasurementsDiameter: 10 in.Voice Coil Diameter: 1.25 in.Depth: 5.0196 in.Outer Diameter: 10.1969 in.Inner Diameter: 9.0944 in.Mounting Hole Bolt Circle Diameter: 9.6456 in.Magnet Assembly Depth: 2.1653 in.Mounting Hole Diameter: 0.2559 in.Nominal Overall Diameter: 259.00 mmNominal Voice Coil Diameter: 32.00 mmFlux Density: 1.05 TVoice Coil Winding Depth: 8.00 mmMagnetic Gap Depth: 6.00 mmMagnet Type: AlnicoVoice Coil Winding Type: CopperVoice Coil Former: NomexCone Material: PaperSurround Material: Integrated PaperDust Dome Material: Solid PaperBasket Material: Pressed Sheet SteelSurround Treatment: NoVoice Coil DC Resistance (Re): 5.57 ΩResonance Frequency (ƒS): 89.90 HzMechanical Q Factor (QMS): 9.96Total Q Factor (QTS): 1.44Mechanical Moving Mass (MMS): 19.70 gMechanical Compliance (CMS): 159.00 µm/NForce Factor (BxL): 6.07 Wb/mEquivalent Acoustic Volume (VAS): 24.04 litersLinear Displacement, maximum (XMAX): 1.00 mmReference Efficiency (nO): 1.01 %Diaphragm Area (SD): 330.10 cm2Losses Electrical Resistance (RES): 32.90 ΩVoice Coil Inductance @ 1 kHZ (LE): 0.52 mHRated Power: 40.00 WMusical Power: 80.00 WSensitivity @ 1W, 1m: 93.80 dB
Price$172.80
