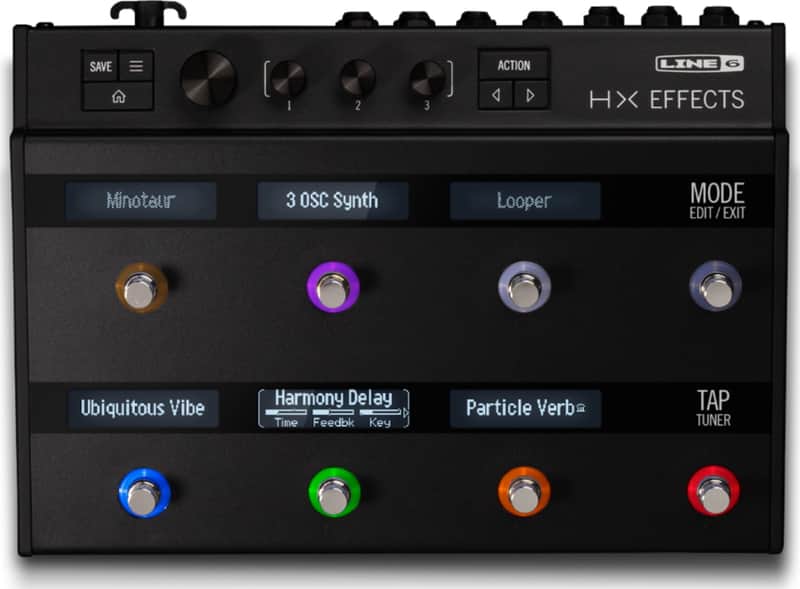

HX Effects features 100+ effects taken from the award-winning Helix® hardware and software processors, all in a compact, pedalboard-friendly format, and up to nine effects can be run simultaneously. In addition, legacy effects from the acclaimed Line 6 M-Series and Stompbox Modeler pedals are also included. Effortlessly edit effects using the eight capacitive-sensing footswitches, six scribble strip LCDs, and color-coded LED rings. Simply touch a footswitch with your finger to instantly jump to any effect, quickly adjust a parameter, or assign controllers. HXEffects also offers a choice of analog bypass or DSP bypass with trails, and an industry-leading 123dB of dynamic range delivers tremendous depth and ultra-low noise. Extensive routing and control options provide flexibility in the studio or on stage, and facilitate easy integration with traditional pedalboards and amps.

Product Features

• 100+ HX effects for your pedalboard—run up to nine simultaneously
• Legacy effects library from M13, M9, M5, DL4, MM4, FM4 and DM4
• Capacitive-sensing switches with LED rings and scribble strips
• Can act as the command center for your entire amp and pedal rig
• Includes Helix Firmware Update 3.50
• The SHARC® audio engine in HX Effects accurately recreates the sonic characteristics and dynamic playing response of classic and modern effects
• Third-party impulse responses may also be loaded
• HX Modeling technology captures the unique behavior of analog effects devices by measuring their individual components, resulting in authentic recreations of even notoriously difficult-to-model effects
• Feature a clear interface that enables fast tone creation and easy interaction
• Color-coded LED rings convey footswitch assignments and status at-a-glance
• Snapshots enable you to create multiple variations within a single preset and seamlessly transition between them, without the audio dropouts that occur when switching between presets
• Switchable line-level input enables keyboardists, DJs, and producers to connect electronic instruments or use HX products as outboard processors
• Easily integrate into pedalboard and studio rigs thanks to their flexible routing capabilities
• Internal routing includes parallel stereo signal paths, while inputs and outputs include stereo-linkable effects loops
• MIDI messages can be sent manually via footswitches (or an optional expression pedal)
• Switchable analog bypass routes signals at the input(s) directly to the output(s) without undergoing A/D/A conversion

Attributes

• Color: Black

Technical Specifications

• Features: Power Supply Included
• Dimensions: 2.81" H x 10.8" W x 7.84" D
• Weight: 4.9 lbs
• Inputs: 2 x 1/4" Inputs, 2 x 1/4" FX Return, 2 x 1/4" Expression
• Outputs: 2 x 1/4" Outputs, 2 x 1/4" FX Send
• MIDI: In, Out, Thru
• Power Source: 9V DC-3G power supply (included)
• USB: 1 x Type B
• Effects: Multi-Effect
• Processing Type: Digital
• Presets: 128 (32 banks x 4 presets)
• # of Effects: 200+, Up to 9 simultaneous FX
• Compatibility: Windows, macOS
• Looping Time: 60 seconds (mono, full speed), 30 seconds (stereo, full speed)
