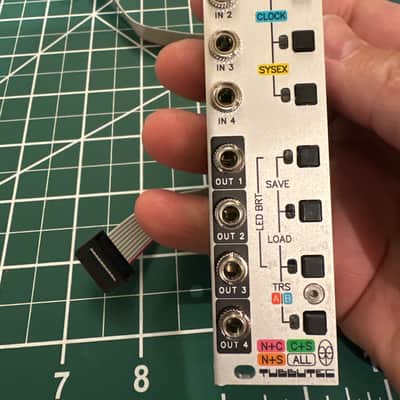

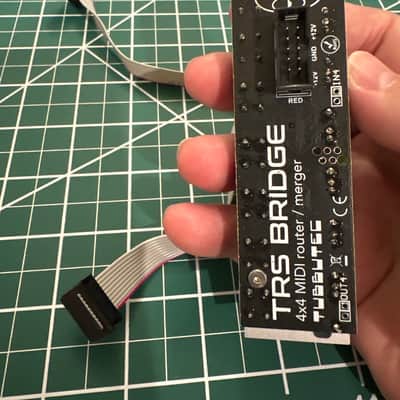

Tubbutec TRS Bridge 4x4 midi TRS router/merger

Tubbutec TRS Bridge 4x4 midi trs router/merger with power ribbon

Routes and merges midi data, four midi inputs and outputs

• 4x TRS MIDI inputs, 4x TRS MIDI outputs
• Can route, split and merge MIDI streams
• Independent MIDI flow settings for notes/CC (red), clock (blue) and sysex (yellow)
• Easy to use user interface, quickly change routes, color coded routes and events.
• MIDI event monitor with color coding for various message types
• Save and recall up to 8 routing settings
• Automatically accepts both TRS A and TRS B at the inputs
• Outputs individually selectable between TRS A and TRS B
• Convert between TRS A and TRS B
• Save detach: Will send note off messages if a connection is detached
• Auto-restarter: Will send re-sync new clock connections automatically
• Sysex Buffer: Buffers Sysex messages if necessary in order to merge them
• Adjustable LED brightness
• works perfectly in combination with USB-Bridge A
• Full galvanic separation of inputs – no ground loops.
• Firmware update via midi Sysex
