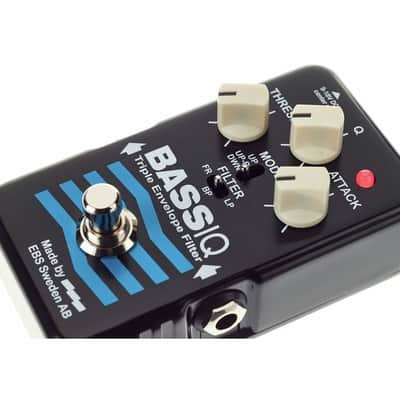

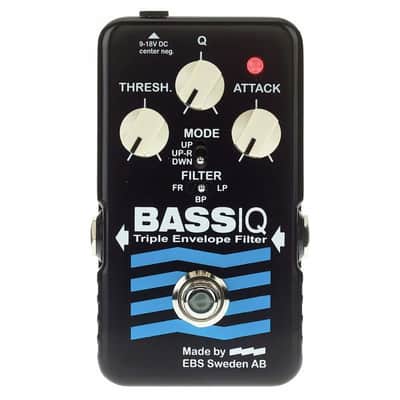

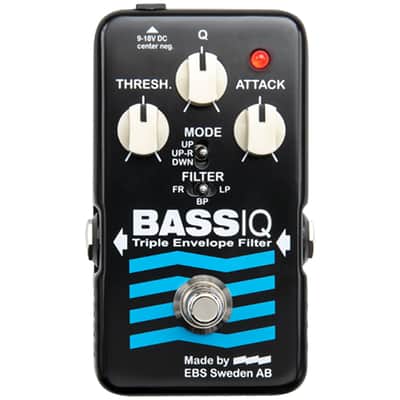

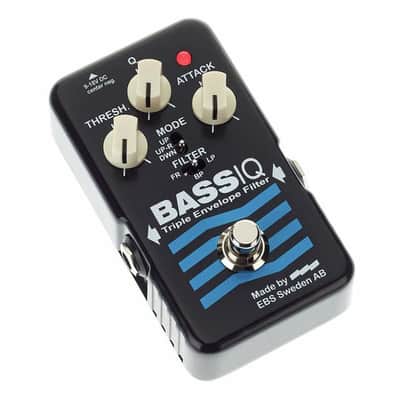

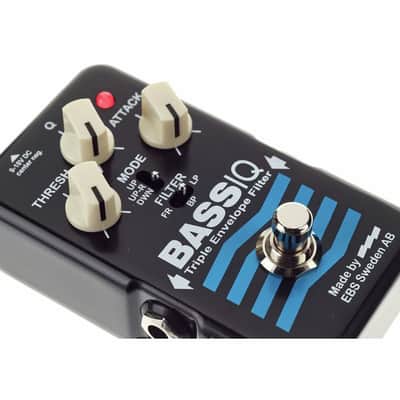

EBS BassIQ Blue Label.A responsive, analog envelope filter that’s as fun as it is musical—now more versatile than ever.
From classic auto-wah to gritty synth-bass growls, the BassIQ reacts dynamically to your playing for a truly expressive filter effect.
Shape Your Sound:
Q, Threshold & Attack controls let you dial in everything from smooth sweeps to punchy funk.
Mode Selector: Switch between Up, Down, and Up-R for different filter movement styles.
Filter Types: Choose Full Range, Band Pass, or Low Pass to reshape the tonal focus instantly.
Deep Control: Internal trim pots adjust gain, envelope range, and high-end mix for pro-level fine-tuning.
The Blue Label version include a more compact design, improved response, and enhanced tone control—ready to fit any pedalboard.
Features
- Low Range: Preserve the low range
- Usage: Suitable for live and studio use
- Filter Type: Flexible envelope filter
- Controls: Q, Threshold & Attack-controls
- Modes: Up, UP-R and Down modes
- Filter Options: Low Pass, Band Pass & Full Range filters
- Fine Tuning: Internal controls for fine tuning
- Bypass: True Bypass
Specs
Nominal Input Level: -10 dBv
Input Impedance: 1.8 Mohms
Output Impedance: 100 ohms
Dry Bandwidth: +0 / -2 dB, 20 – 20 kHz
Filter
- Range: 100 – 2.5k Hz
- Q: 0.7 – 15
- Mode: Down / Up-Range / Up
- Type: Low Pass, Band Pass, Full Range
Threshold: -50 to +6 dBv
Attack Time (80%): 50 ms – 2 s
Dimensions (W x H x D): 2.6″ x 4.5″ x 1.9″ (67 x 115 x 48 mm)
Weight: 315 g (0.7 lb.)
Type: Analog Effect, Relay Switching
Power Requirements: 9, 12, or 18 V DC, 55 mA max (shuts off below 6 V)
