FEATURES

• B-STOCK ITEM: Signs of light use (display model)
• 4-operator FM Sound Engine
• Onboard multi-effects
• 32 memory locations
• Phrase looper
• Sustain pedal input
• Stereo speaker system
• Bass reflex port technology
• Operates on 6 AA batteries for up to 5 hours for true portability

 *Includes 12V power supply
DESCRIPTION

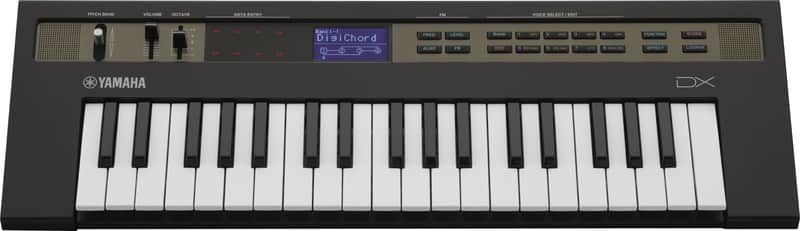

Yamaha reface keyboards are designed around the practical needs of contemporary musicians. The name of the series, "reface" is a conflation of the idea of reimagining and the legacy of Yamaha's many groundbreaking keyboard instrument interfaces. Among the innovations that it harkens back to are the legendary CP80, Yamaha Combo Organ and CS5 keyboards. This is the reface DX, which has as one of its chief orientations the bell pianos and broad digital synth library from the DX7.

The reface series is small. Incredibly small. But unlike miniature keyboard instruments of the past, the reface touch is satisfying and expressive, and the sound is nothing short of spectacular. The reface family of keyboards features built-in speakers and is battery operable so you can create on the go. An AUX line in allows you to play along with MP3 players or whatever other audio device you wish to use. Add MIDI and USB connectivity, and the reface's capacity to interface with external devices is vast.

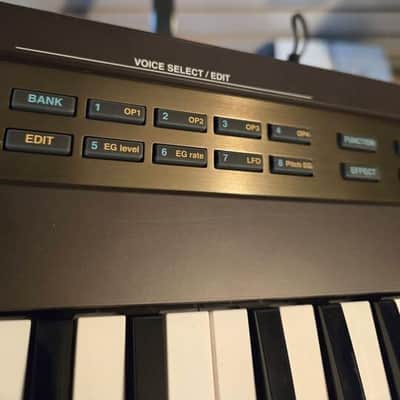

Reface DX goes retro '80s to cutting-edge modern at the flick of a switch, literally. Capacitive multi-touch control puts powerful FM synthesis under your fingertips. Quickly edit, store and recall 32 of your favorite Voices with the onboard memory. Add final polish to your sound using the two onboard multi-effects. Got a quick idea for a song or just want to jam? The onboard Looper records your playing complete with sound-on-sound-style overdubs. You can even change or edit Voices while playing back the Looper—a great way to fine-tune your custom Voices.

For sound designers and keyboardists needing classic '80s to cutting-edge EDM FM sound, reface DX is a mini-key FM synthesizer based on the legendary DX7, featuring modern four-operator FM synthesis and dual effects processors. The reface DX offers unique and complex synth sound that's only possible from Yamaha.

SPECIFICATIONS

• B-STOCK ITEM: Signs of light use (display model)
• Type: Keyboard Synthesizer
• Sound Engine: FM tone generation
• Number of Keys: 37
• Type of Keys: Mini synth keys
• Velocity Sensitive: Yes
• Other Controllers: Pitchbend
• Polyphony: 8 notes
• Number of Presets: 32 voice memories
• Effects Types: VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb, Distortion
• Sampling: Phrase looper
• Audio Inputs: 1 x 1/8" (aux in)
• Audio Outputs: 2 x 1/4" (left, right)
• Headphones: 1 x 1/4"
• USB: 1 x USB Type B
• MIDI I/O: 1 x MIDI jack with breakout cable
• Pedal Inputs: 1 x 1/4" (sustain)
• Power Source: 12V DC power supply / 6 x AA batteries (5 hour life span)
• Height: 2.37"
• Width: 20.87"
• Depth: 6.87"
• Weight: 4lbs 3oz

 *Includes 12V power supply
