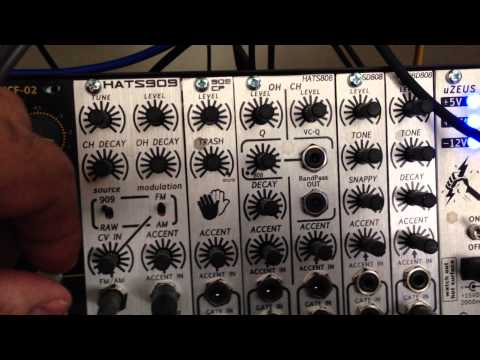

Tiptop Audio HATS909 Black - Drum Modular Synthesizer

• Drum module for modular synthesisers
• Uses the same circuitry as the Roland TR-909
• Manual and voltage control of tuning
• Modulation switch for choosing between FM/AM
• Signal line of the sampled sound can be controlled via the source switch
• Analogue filters built in

Tiptop Audio HATS909 in black is a drum module for modular synthesisers in Eurorack format. It uses the same circuitry as the Roland TR-909, but the original TR-909 circuitry is a combination of lo-fi 6-bit sound samples that are run through a series of analogue components, enveloped and filtered. HATS909 allows manual and voltage control of the tuning, enabling crushed hats, short ticks and everything in between. The modulation switch allows you to choose between FM/AM. The signal line of the sampled sound can be controlled via the source switch. This allows the sound to be routed either raw or through the 909's analogue filters and VCA. As with all drums in this series, the powerful Output allows the sound to be further enhanced with distortion and clipping. The module can be triggered via the Gate inputs with a trigger/gate signal from the step sequencer, Clock-Divider or any other pulse/clock source. The multiple Tiptop drum modules form a complete, flexible synthesiser system. In combination with the MIXZ module, the sum mix is available for immediate tapping.
