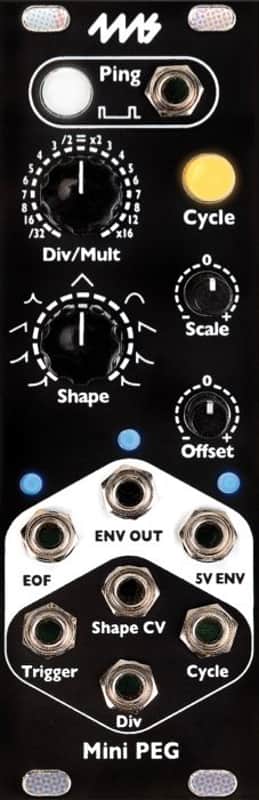

The Mini PEG is a clock-synced envelope generator and LFO whose envelope times are set by the time between clock pulses or “pings”. The Mini PEG is the latest version of the classic 4ms Pingable Envelope Generator.

• Envelope length set by incoming clocks or “pings”
• Ping button (tap tempo) or external clock/triggers set the envelope time
• Div/Mult knob and CV jack divide and multiply ping clock from /32 to x16
• Shape knob with full CV control for waveshaping the output envelope, includes various combinations of exponential, linear, logarithmic and interpolated curves
• Cycle button and gate jack for looping envelopes
• Scale knob acts as attenuating inverter for main envelope output
• Maximum 9.5V peak-to-peak
• Offset knob for setting DC offset, ranging from -9.4V to +9.4V
• End-of-Fall (EOF) output jack goes high when envelope finishes a fall portion and low when envelope begins a fall portion
• Jack can also be configured as End-of-Rise, Half-Rise, or Tap Clock Out
• ENV OUT jack outputs scaled/offset envelope
• 5V ENV jack output always produces a 0V to +5V envelope, independent from scale/offset
• Trigger jack starts or re-starts an envelope
• Can be configured as Quantized Trigger, Async Trigger, or Async Gate
• 8HP Eurorack module

• Mini PEG
  • 8HP Eurorack format module
  • 0.95” (24mm) maximum depth (includes power cable)
  • 16-pin Eurorack power header
• Power consumption
  • +12V: 55mA
  • -12V: 30mA
• Envelope Outputs
  • Maximum voltage range (ENV OUT): -9.4V to +9.4V
  • Maximum amplitude (ENV OUT): 9.5Vpp
  • Voltage range (5V OUT): 0V to +5V
  • Frequency range: +/-0.1dB DC to 1kHz, , -2.0dB@4kHz
  • 12-bit, 40kHz sample rate
• Clock Range
  • Period range: 29.16 hours to 250µs (4kHz)
• CV Inputs (Div/Mult and Shape)
  • Voltage range: -5V to +5V
• Gate Inputs (Ping, Trigger, Cycle)
  • Rising edge threshold: 2.5V
