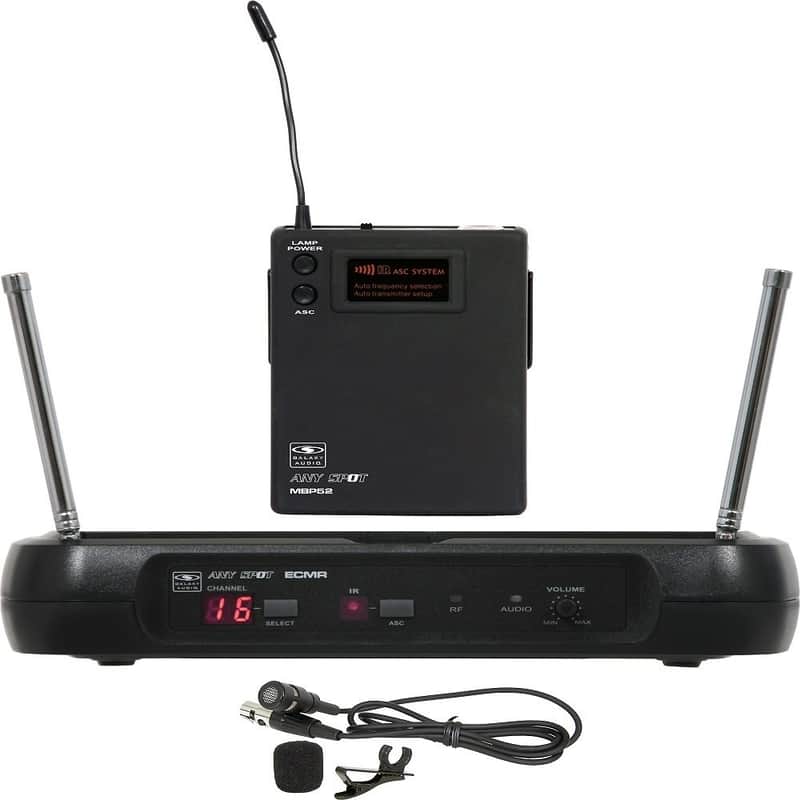

Mint Galaxy Audio ECMR/52LVD Wireless Microphone System; Band D (584-607 MHz)

The ECM Wireless Receiver is an economical solution to a great wireless microphone system. The ECM has 16 selectable channels, IR Sync, Diversity Antennas mounted to the front of the rugged plastic casing. The ECM is available with a handheld, body pack with headset or lav, instrument cable, our popular guitar bud or with our wireless headset the HS-UBKT.

The ECMR can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.

Receiver (ECMR)

• 16 Selectable Channels

• Output Volume Control

• AF Level Indicator

• IR Sync

• Squelch Adjustment

• XLR / ¼" Outputs

• Rugged Plastic Casing

Body Pack (MBP52)

• IR Sync

• 2 AA Batteries

• Mic/0/-10 dB

• 3 Position Switch

• Low Battery Indicator

• 2.8 oz (80 g)

Lavalier Mic (LV-U3BK)

• Uni Element

• Lapel / Lavalier

• Freq. Response: 50Hz - 19kHz

• Frequency Range and Transmitter Output Level

• Frequency Range: CODE D 584~607MHz

• CODE L 655~679MHz

• Transmitter Output Level: 10dBm

• Band: UHF

• Operating Range: Under Typical Conditions 150' (50m)

• Note: actual range depends on RF signal absorption, reflection, and interference

• Audio Frequency Response: +/-3dB 70Hz~16kHz

• Total Harmonic Distortion: +/-30kHz deviation 1kHz tone <1%

• Dynamic Range: >90dB A-weighted

• Operating Temperature: Range 14ºF to 122ºF (-10 Cº to +50 Cº)

• Note: battery characteristics may limit this range
