Multiple Synthesis Oscillator Types

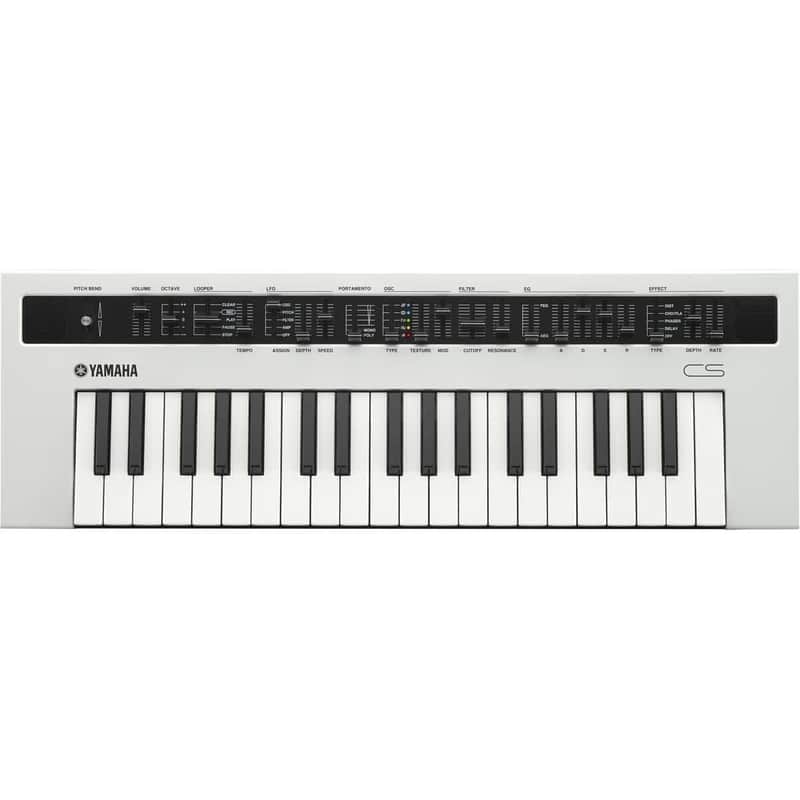

Analog modelling synth: simple control, complex sound, endless possibilities. Not just another monophonic analog clone, the 8-note polyphonic reface CS’ five unique oscillator modules create an incredible variety of sounds from analog to digital. Animate your sound with the LFO and EG, add flavor with the onboard effect and filter. Record song ideas using the onboard Looper.

Key Features

  • Analog Physical Modeling Engine with multiple synthesis and oscillator types
  • Onboard effects processor with five TYPES add depth to your sound
  • 8-note polyphony allows complex chords and pads or switch to mono mode for fat synth bass or solo leads!
  • Integrated phrase Looper: capture song ideas or just jam!
  • HQ mini keyboard allows fast, natural performance with premium feel and response
  • Continuous controller pedal input for volume control
  • 2W 3cm stereo speaker system lets you play any place, any time!
  • Specially designed bass reflex port technology enhances bass response for full, rich sound
  • Battery powered! Uses six "AA" batteries with five hours of life!
  • USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device
  • A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
  • Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more

Technical Specifications

Amplifiers and Speakers
Amplifiers 2 W x 2
Speakers 3 cm x 2
Voices
Number of types 5 OSC types
Effects Distortion, VCM Chorus/Flanger, VCM Phaser, Delay
Size/Weight
Dimensions Width 530 mm (20 7/8")
Height 60 mm (2 3/8")
Depth 175 mm (6 7/8")
Weight 1.9 kg (4 lbs, 3 oz) (not including batteries)
Keyboard
Number of Keys 37 keys
Type HQ mini (High-Quality mini)
Initial Touch Yes
Tone generation
Maximum Polyphony 8
Engine AN (Analog Physical Modeling)
Connectivity
DC IN DC IN (12 V) jack
Headphones PHONES (6.3 mm, stereo phone jack)
MIDI MIDI (mini-DIN IN/OUT)
AUX IN AUX IN (3.5 mm, mini stereo phone jack)
OUT PUT L/MONO, R (6.3 mm, TS phone jack, unbalanced)
USB TO HOST USB (TO HOST)
Pedal Type FOOT CONTROLLER: FC7 (optional) (to adjust the volume)

ConditionBrand New (New)
Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more
Brand
Model
  • Reface CS Mini Mobile Keyboard
Categories
Keyboard Action
  • Synth Action
MIDI I/O
  • USB MIDI
  • MIDI Input
  • MIDI Output
Key Size
  • Mini
Polyphony
  • 8 Voices
Number of Keys
  • 37 Keys
Analog / Digital
  • Digital
