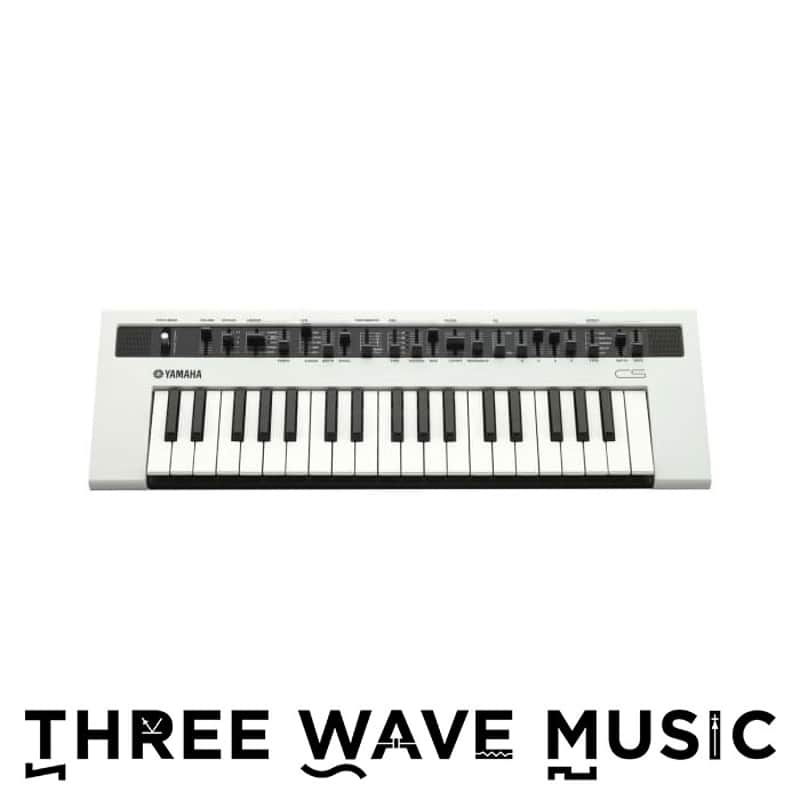

Analog Physical Modeling Engine with multiple synthesis and oscillator types
Each oscillator type has flexible LFO and ADSR routing plus unique TEXTURE and MOD controls that work as follows:

OSC typeTEXTUREMOD Multi-saw Adds sub-oscillator Layers multiple sawtooth waves Pulse Changes pitch of second pulse wave Changes pulse width Oscillator Sync Changes pitch and tone of second oscillator Sets pitch change amount Ring Modulation Changes pitch of first oscillator Changes pitch of second oscillator FM Sets modulation amount Changes pitch of the modulator Onboard effects processor with five types add depth to your sound
The effect types are: OFF (effect bypass,) Delay, VCM Phaser, VCM Chorus/Flanger and Distortion

8-note polyphony
Allows complex chords and pads or switch to mono Mode for fat synth bass or solo leads. Control

Keyboard
Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response for fast, accurate and natural playing.

Looper
Integrated Phrase Looper: capture song ideas or just jam

Pedal
Continuous controller pedal input for volume control

Mobility & Connectivity

Speakers
2W 3cm stereo speaker system lets you play any place, any time
Specially designed bass reflex port technology enhances bass response for full, rich sound

Battery powered
Uses six "AA" batteries with five hours of life

USB
USB "TO HOST" allows MIDI connectivity to your USB-equipped computer or iOS device

Audio output
Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more

Audio input
A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument

Soundmondo: Social Sound Sharing

Soundmondo is a free sound sharing community that lets you discover, create and share reface Voices and Set Lists using Google Chrome any place, any time you’re online. Powered by Web MIDI, Soundmondo is simple to use - just connect reface to Chrome and you’re ready to create or start browsing.

Create your song any place, any time with Cubasis LE

Cubasis LE is the compact version of Steinberg's streamlined, multitouch sequencer for the iPad, providing the same look and feel of its bigger brother Cubasis.

Specs Amplifiers and Speakers Amplifiers 2 W x 2 Speakers 3 cm x 2 Power Supply Power Consumption 6 W (When using PA-130 power adaptor) Battery Life Approximately 5 hours Auto Power Off Yes Power SupplyAdaptors PA-130 or an equivalent recommended by Yamaha Batteries Six “AA” size batteries or Ni-MH rechargeable batteries Accessories Included AC adaptor*, MIDI breakout cable, Owner’s Manual, Warranty* *May be included depending on your locale Voices Number of types 5 OSC types Effects Distortion, VCM Chorus/Flanger, VCM Phaser, Delay Size/Weight DimensionsWidth 530 mm (20 7/8") Height 60 mm (2 3/8") Depth 175 mm (6 7/8") Weight 1.9 kg (4 lbs, 3 oz) (not including batteries) Keyboard Number of Keys 37 keys Type HQ mini (High-Quality mini) Initial Touch Yes Tone generation Maximum Polyphony 8 Engine AN (Analog Physical Modeling) Other Features Phrase Looper Yes Connectivity DC IN DC IN (12 V) jack Headphones PHONES (6.3 mm, stereo phone jack) MIDI MIDI (mini-DIN IN/OUT) AUX IN AUX IN (3.5 mm, mini stereo phone jack) OUT PUT L/MONO, R (6.3 mm, TS phone jack, unbalanced) USB TO HOST USB (TO HOST) PedalType FOOT CONTROLLER: FC7 (optional) (to adjust the volume)
