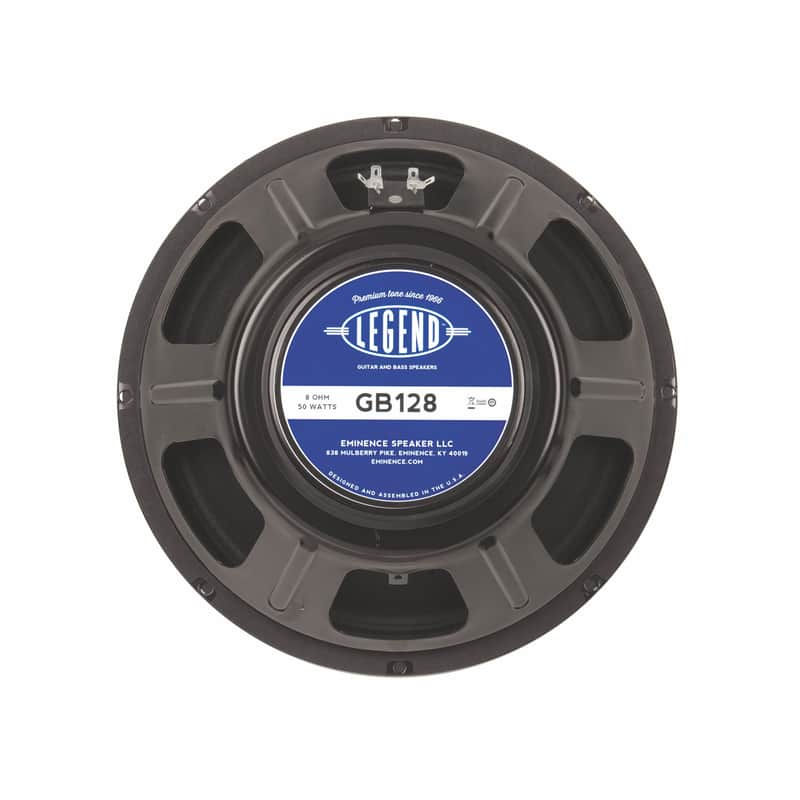

Eminence Legend GB128 50 Watts 8 Ohm 12" Guitar Speaker

Overview

The Eminence Legend GB128 guitar speaker helps clean up your act. Cleaner British voiced tone with a full low end, warm, throaty mids and a very open top end. Turn up the volume and turn back the clock.

SPECIFICATION

• Nominal Basket Diameter: 12", 305 mm
• Nominal Impedance*: 8 Ω
• Power Rating*
• Program Power: N/A
• Watts: 50 W
• Resonance: 86 Hz
• Usable Frequency Range: 80 Hz - 5.1 kHz
• Sensitivity*: 101.3 dB
• Magnet Weight: 38 oz.
• Gap Height: 0.312", 7.9 mm
• Voice Coil Diameter: 1.75", 44 mm

THIELE & SMALL PARAMETERS

• Resonant Frequency (fs): 86 Hz
• DC Resistance (Re): 6.37 Ω
• Coil Inductance (Le): 0.64m H
• Mechanical Q (Qms): 19.54
• Electromagnetic Q (Qes): 0.67
• Total Q (Qts): 0.65
• Compliance Equivalent Volume (Vas): 43.9 liters / 1.55 cu.ft.
• Peak Diaphragm Displacement Volume (Vd): 40.5 cc
• Mechanical Compliance of Suspension (Cms): 0.12 mm/N
• BL Product (BL): 12 T-M
• Diaphragm Mass Inc. Airload (MMs): 28 grams
• Efficiency Bandwidth Product (EBP): 128
• Maximum Linear Excursion (Xmax): 0.8 mm
• Surface Area of Cone (Sd): 506.7 cm2
• Maximum Mechanical Limit (Xlim): N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

• Sealed: Acceptable
• Vented: Acceptable
• Driver Volume Displaced: 0.071 cu.ft. / 2 liters
• Overall Diameter: 12.03", 305.6 mm
• Baffle Hole Diameter: 11.07", 281.2 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.25", 6.4mm
• Mounting Holes B.C.D.: 11.59", 294.4mm
• Depth: 5.1", 129.5 mm
• Net Weight: 8.1 lbs, 3.67 kg
• Shipping Weight: 10.1 lbs, 4.58 kgs

MATERIALS OF CONSTRUCTION

• Coil Construction: Copper voice coil
• Coil Former: Paper former
• Magnet Composition: Ferrite magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Paper cone
• Cone Edge Composition: Paper cone edge
• Dust Cap Composition: Zurette dust cap
