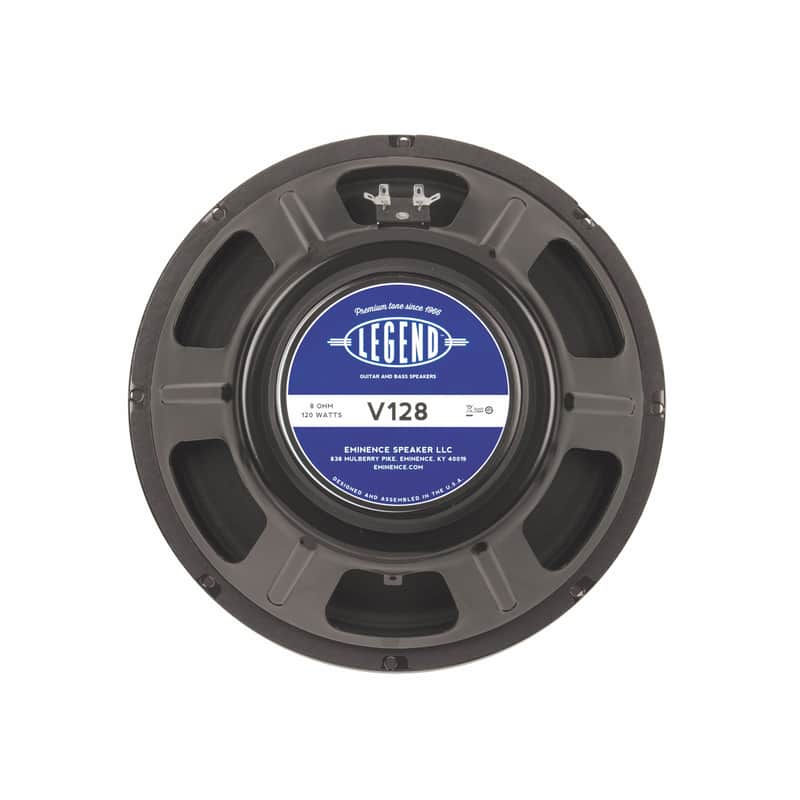

Eminence 12" 120 Watt 8 Ohms Brit Rock Guitar Speaker - LEGENDV128

Overview

The Eminence Legend V128 guitar speaker brings home classic tone from across the pond. Balanced, more mellow British sound with warm, smooth mids and highs and tight lows. Angus steak at hamburger prices.

Specification

• Nominal Basket Diameter: 12", 305 mm
• Nominal Impedance*: 8 Ω
• Program Power: N/A
• Watts: 120 W
• Resonance: 89 Hz
• Usable Frequency Range: 80 Hz - 5 kHz
• Sensitivity*: 100.9 dB
• Magnet Weight: 38 oz.
• Gap Height: 0.312", 7.9 mm
• Voice Coil Diameter: 1.75", 44 mm

Thiele & Small Parameters

• Resonant Frequency (fs): 89 Hz
• DC Resistance (Re): 6.37 Ω
• Coil Inductance (Le): 0.64m H
• Mechanical Q (Qms): 11.98
• Electromagnetic Q (Qes): 0.83
• Total Q (Qts): 0.77
• Compliance Equivalent Volume (Vas): 39.4 liters / 1.39 cu.ft.
• Peak Diaphragm Displacement Volume (Vd): 41.6 cc
• Mechanical Compliance of Suspension (Cms): 0.1 mm/N
• BL Product (BL): 11.5 T-M
• Diaphragm Mass Inc. Airload (MMs): 30 grams
• Efficiency Bandwidth Product (EBP): 107
• Maximum Linear Excursion (Xmax): 0.8 mm
• Surface Area of Cone (Sd): 519.5 cm2
• Maximum Mechanical Limit (Xlim): N/A

Mounting Information

• Recommended Enclosure Volume
• Sealed: Acceptable
• Vented: Acceptable
• Driver Volume Displaced: 0.071 cu.ft. / 2 liters
• Overall Diameter: 12.03", 305.6 mm
• Baffle Hole Diameter: 11.07", 281.2 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.25", 6.4mm
• Mounting Holes B.C.D.: 11.59", 294.4mm
• Depth: 5.1", 129.5 mm
• Net Weight: 8.1 lbs, 3.67 kg
• Shipping Weight: 10.1 lbs, 4.58 kgs

Materials Of Construction

• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Ferrite magnet
• Core Details: Non-vented core
• Basket Materials: Pressed steel basket
• Cone Composition: Paper cone
• Cone Edge Composition: Paper cone edge
• Dust Cap Composition: Solid composition felt dust cap
