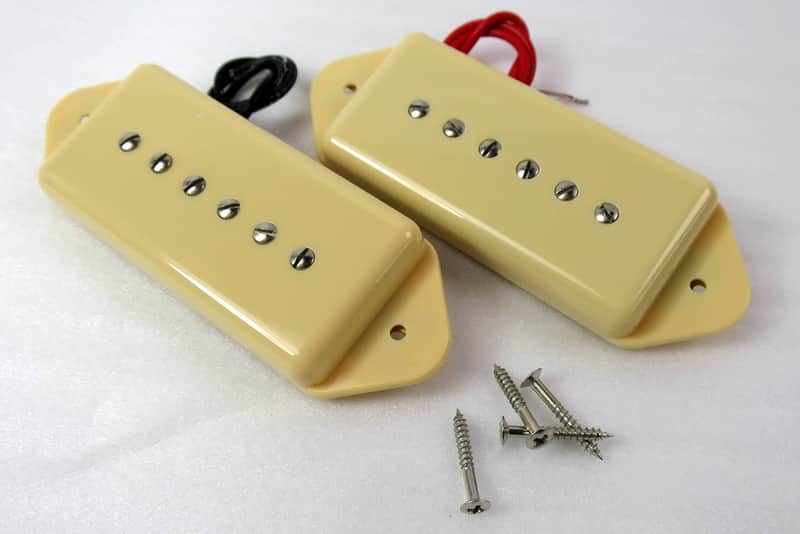

P-90 Matched Pair Dog Ear Flat Thinline Cream Set Crispy DragonMountain
Mount Hole Spacing :: 96.75mm or 3.80"
Pole Spacing at 50mm Neck Side / 52mm Bridge Side
Single Conductor / 10" Of Wire on Bridge Side / 11.5" Of Wire on Neck Side
Total Thickness including the protruding back screws :: 20.67mm or .813"
Neck Meters at 5.12K Average
Bridge Meters at 5.14K Average
Best Used on a Solid Body, Flat Top Electric Guitar
These are crisp, ceramic magnet units, brass baseplates, with a solid, fat tone .. especially if you wire using the Gibson® vintage wiring schematic available on their website .. I do not provide wiring diagrams any longer since there are literally hundreds, if not thousands, of sites out there ..
Keep in mind that these do need a route on the top of your guitar, although it can be more shallow than a Humbucker style .. the bottom of the pickup itself, protrudes 4.22mm approximately, including screws from the edge of the bottom of the cover .. in other words, the pickup as a whole, will not sit flush without at least a shallow rout in the body the size of the pickup itself .. you should support the pickups underneath with some dense foam or use dowels at the exact right length between the bottom of the pickup and the bottom of the route .. always do your research on what you'll need to do in order to install any pickup, especially if you are changing pickup type .. P-90's are not exactly the same size as a Humbucker
Mount Hole Spacing :: 96.75mm or 3.80"
Pole Spacing at 50mm Neck Side / 52mm Bridge Side
Single Conductor / 10" Of Wire on Bridge Side / 11.5" Of Wire on Neck Side
Total Thickness including the protruding back screws :: 20.67mm or .813"
Neck Meters at 5.12K Average
Bridge Meters at 5.14K Average
Best Used on a Solid Body, Flat Top Electric Guitar
These are crisp, ceramic magnet units, brass baseplates, with a solid, fat tone .. especially if you wire using the Gibson® vintage wiring schematic available on their website .. I do not provide wiring diagrams any longer since there are literally hundreds, if not thousands, of sites out there ..
Keep in mind that these do need a route on the top of your guitar, although it can be more shallow than a Humbucker style .. the bottom of the pickup itself, protrudes 4.22mm approximately, including screws from the edge of the bottom of the cover .. in other words, the pickup as a whole, will not sit flush without at least a shallow rout in the body the size of the pickup itself .. you should support the pickups underneath with some dense foam or use dowels at the exact right length between the bottom of the pickup and the bottom of the route .. always do your research on what you'll need to do in order to install any pickup, especially if you are changing pickup type .. P-90's are not exactly the same size as a Humbucker
