Saturnworks Switchable Latching TRS Expression Switch Pedal with a Neutrik Jack - Handcrafted in California

Double the versatility of your device by easily switching between two perfectly dialed-in expression settings with the Saturnworks latching expression pedal.

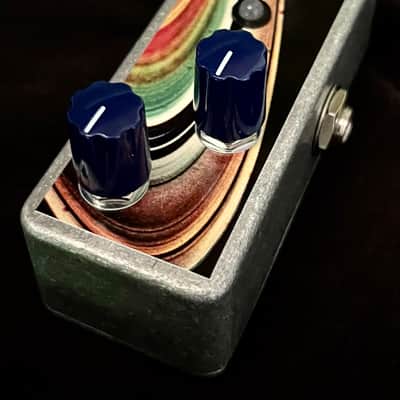

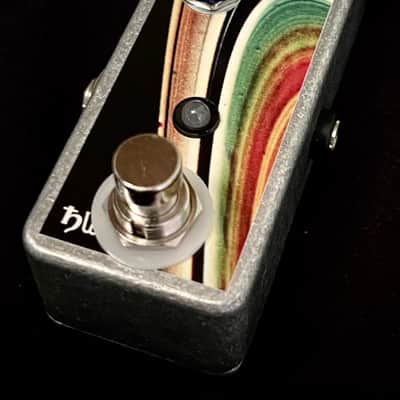

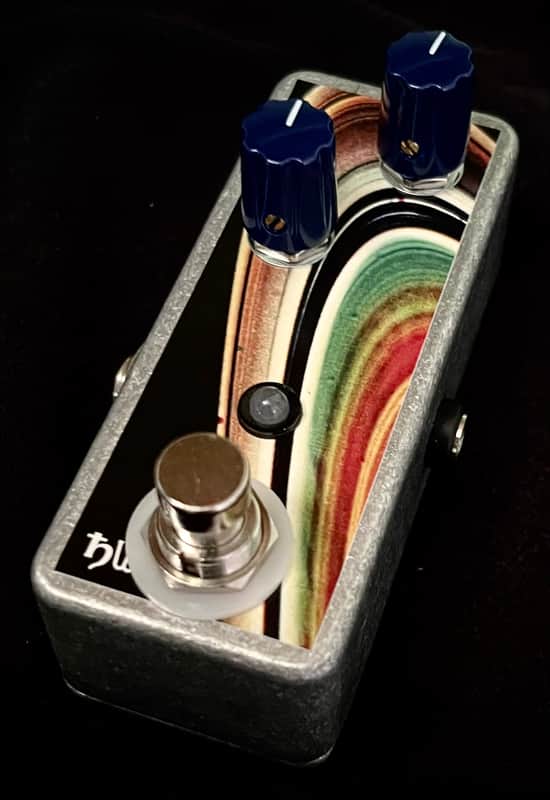

The lower knob controls one expression setting and the upper knob controls the other expression setting. The latching footswitch toggles between the two settings. A bi-colored LED indicates which is active.

Unlike bulky full-size expression pedals, the slim 1.5" x 3.5" enclosure is easy to squeeze onto crowded boards.

The default setup for the Saturnworks expression switch is the common tip-wiper TRS configuration, for use the vast majority of brands out there including Strymon, Boss, Dunlop, EHX etc. The default setup is two B10k pots wired to be tip-wiper. Other pots, such as B25k or B100k, can be installed by request. If you would like a different pot value, please send a message after you check out to let us know which pot you would prefer. If we don't hear from you, we will send our standard TRS 10k configuration.

Please note: We have found that even when set up to the correct (TS 10k) specs, unfortunately expression switches do not work with Line 6 devices.

The compact switchable expression is handcrafted with top quality components and features, including:

• A compact 3.6" x 1.5" (1590A size) aluminum enclosure.
• A heavy-duty Neutrik 1/4” TRS jack.
• A high quality latching footswitch.
• High quality wire made in the USA.
• A top quality Lumberg power jack.
• A passive design does not require power to work. The power is only to make the bi-colored LED light up. The current draw for the LED is approximately 8mA.
• Handcrafted and bench-tested in California, USA.
• A one-year limited warranty against parts and manufacturing defects. See saturnworkspedals.com for warranty terms and conditions.

The expression switch must be connected with a 1/4" TRS patch cable (not included).

Please note: We can bundle a TRS cable with your order. We have TRS cables available on our shop page.

Check out saturnworkspedals.com for the full Saturnworks lineup.
