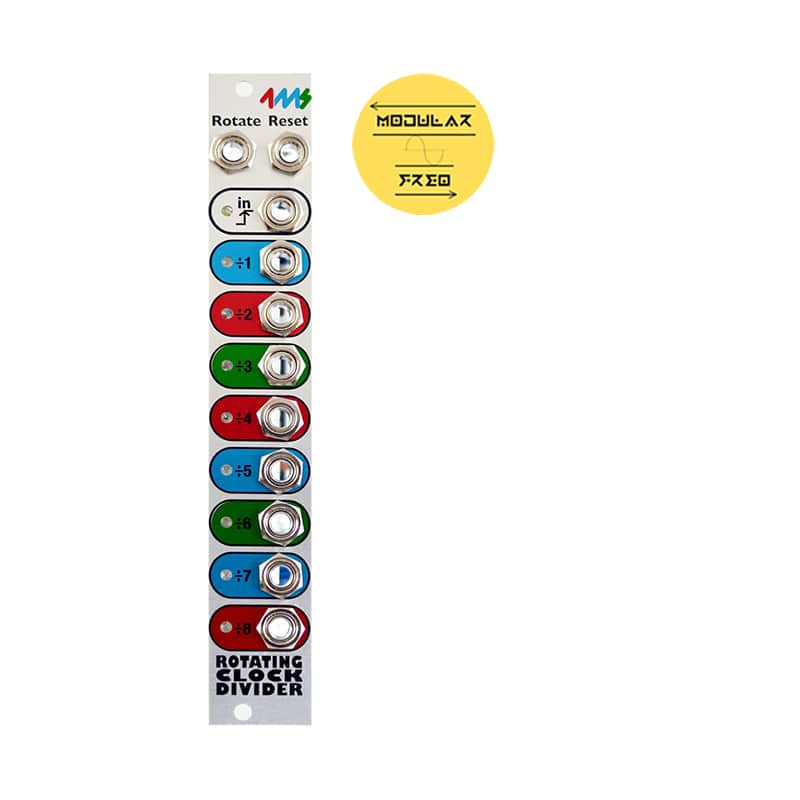

The Rotating Clock Divider (RCD)
produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.
Electrical and Mechanical Specifications:
produces eight divided clock tempos from a single input clock. The divisions range from /1 to /64, including all odd and non-standard divisions such as /3 and /17 and /62. A Rotate CV input re-assigns the division number of each jack, allowing for creative mix-ups and experimentation. A Reset input jack helps to sync/start with an external clock.
Electrical and Mechanical Specifications:
- Module size:
- 4 HP Eurorack format module
- 1.39" (35mm) deep
- Power consumption:
- 5VSEL Jumper set to INT:
- 33mA maximum power draw from +12V rail
- 0mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
- 5VSEL Jumper set to EXT:
- 19mA maximum power draw on the +12V rail
- 14mA max on the +5V rail
- 4mA maximum power draw on the -12V rail
- 16-to-16 pin power cable
- 2 M3 Knurlie screws
