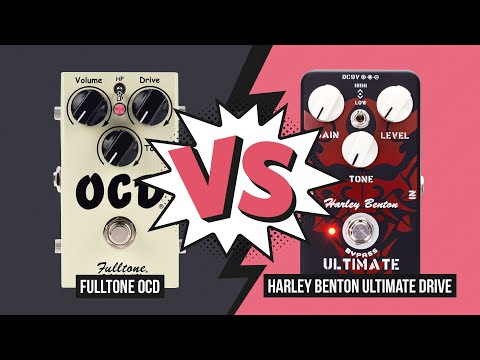

Harley Benton / Joyo JF-02 Ultimate Drive (overdrive/distortion effect pedal):
General Information

• Manufacturer: Joyo Technology

• Model: JF-02 (Ultimate Drive)

• Effect Type: Overdrive / Distortion (translucent tube-amp simulator style)

• Circuit Type: Analog


Electronic & Electrical Specifications

• Input Impedance: 1 MΩ

• Output Impedance: 1 kΩ

• Running Current: 6 mA

• Power Requirements: 9V DC Regulated AC Adapter (Center Negative) or 6F22 9V Battery

• Bypass Type: True Bypass


Controls & Interface

• Knobs:

• • Gain: Adjusts the amount of distortion/overdrive saturation

  • Tone: Controls high-frequency filtering/EQ

  • Level: Controls the overall master output volume

• Switches:

• • High / Low 2-way toggle switch (Low mode adds a slight mid-boost/crunch; High mode provides a boosted flat frequency/tighter response)

  • Heavy-duty metal footswitch (True Bypass effect engagement)

• Indicators: On/Off LED status indicator light


Physical & Mechanical Specifications

• Enclosure Material: Sturdy aluminum alloy chassis with stoving varnish finish

• Dimensions: 120 mm (L) × 72 mm (W) × 55 mm (H) (approx. 4.72" x 2.83" x 2.17")

• Weight: 290 g (approx. 0.81 lbs)
