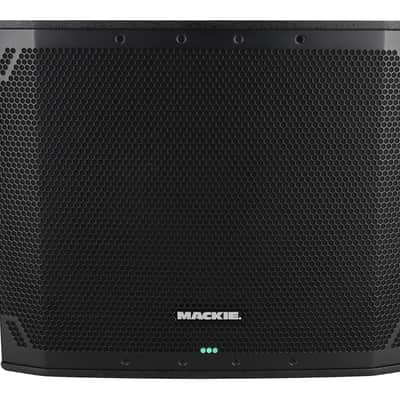

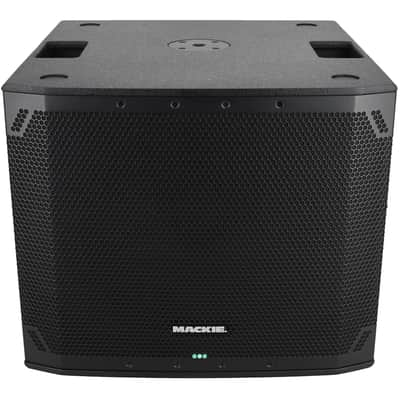

Mackie Thump15S V4 15" 1400 Watt Powered Active Subwoofer Class D Sub

What’s in the Box:

• Thump15Sv4 Subwoofer

• Power Cable

• Quick Start Guide


Description:

Mackie Thump15Sv4 15" Professional Powered Subwoofer feat. 132 dB SPL, 27 Hz Low Frequency, Selectable High Pass Modes, Phase Invert Switch, Built-in Carry Handles, Connect Any Loudspeakers, 1400W

Leave an Impression
Craving some extra oomph for your PA system? You need a subwoofer. Thump15Sv4 shakes the floorboards with massive bass that gets people on their feet, for moments that leave a lasting impression. Connect loudspeakers. Dial in the perfect low end. Feel the difference of a professional subwoofer that brings music alive with complex basslines and punchy kicks.

Complete Your Thump System With a True Workhorse
Thump15Sv4 combines a 1400W Class-D amp and 15” woofer for massive 132 dB SPL and floor-shaking 27 Hz low frequency. It’s rugged enough to handle any gig and features built-in handles for easy loading, making it the ultimate subwoofer for gigging professionals like DJs and musicians.

Features:

• 1400W ultra-efficient Class-D amplifier

• 15” high-performance woofer

• High pass modes tailor the bass to your speakers

• Fully mutable level control

• Stereo XLR inputs for your audio source

• Stereo high-pass XLR outputs for loudspeakers

• Stereo full-range XLR outputs with mono button for chaining more subs

• Phase invert switch

• Built-in ergonomic carry handles

• M20 mounting thread for SPM400 speaker pole (sold separately)


Technical Specs:

• Frequency Response (–10 dB): 27 Hz – 160 Hz

• Frequency Response (–3 dB): 34 Hz – 160 Hz

• Maximum SPL Peak: 132 dB

• Low Frequency Transducer: 15 in / 381 mm woofer

• System Power: 1400 watts peak

• Low Frequency Power: 1400 watts peak

• Rated THD: <1%

• Cooling: Convection

• Design: Class D

• Input Type: 2x Female XLR Balanced

• Input Line Impedance: 10kΩ Balanced

• Output Type: Male XLR Balanced (2x Full Range, 2x High Pass)

• Full Range Output: Stereo / Mono

• Phase: Normal / Invert

• Output Impedance: 150Ω

• Line Input Power: 100–240V~, 50–60 Hz, 400W

• AC Connector: 3-pin IEC 250 VAC, 10 A male

• Power Supply Type: Switch mode Universal mains regulated power supply with PFC integrated

• Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection

• Display LEDs: Front LED, High Pass Mode, Signal/Overload

• Mounting Methods: Thumpv4 Series subwoofers are designed to sit on the floor or stage. They are NOT designed to be pole-mounted or suspended. The cabinet has no rigging points and is not suitable for rigging. Never attempt to suspend a Thumpv4 Series subwoofer by its handles.

• Height: 18.5 in / 470 mm

• Width: 22.1 in / 561 mm

• Depth: 23.0 in / 584 mm

• Weight: 57.4 lbs. / 26.0 kg
