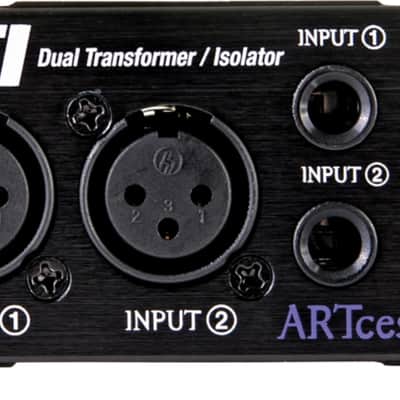

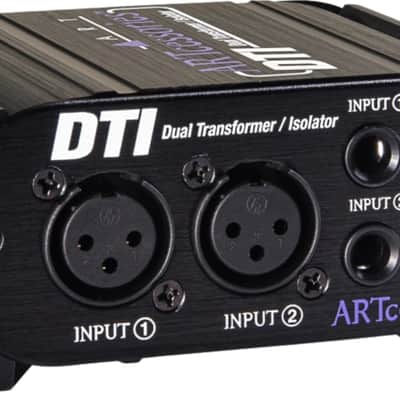

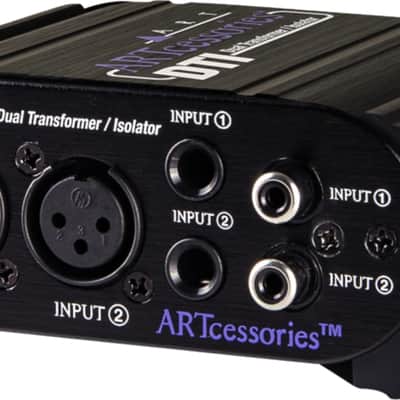

ART DTI Dual Transformer/Isolator Box

Light wear: Minor wear from normal use. Damage: None. Note: Wear and tear on the original packaging.

The DTI Dual Transformer / Isolator uses a pair of high-performance transformers to reduce hum and ground loop noise, separating the input and output signal grounds for total isolation between two systems. The transformers are wound for 1:1 unity gain, and have an extremely flat and wide frequency response. Even at high signal levels, they provide clean, transparent sound. With XLR, 1/4” TRS, and RCA connectors on all inputs and outputs, the DTI is flexible and easy to integrate. Featuring a rugged aluminum enclosure and a passive design that doesn’t require external power, the DTI is built for years of reliable use.

Product Features

• 2x XLR Inputs and Outputs
• 2x 1/4" Inputs and Outputs
• 2x RCA Inputs and Outputs
• 10 Hz - 50 kHz Frequency Response
• 0.01% THD (Typical at 1 kHz, +18 dBU)
• Passive Design - No Power Required

Technical Specifications

• Dimensions: 1.75" h x 4.2" W x 3.5" D
• Weight: .75 lbs
• Inputs: 2 x Balanced XLR, 2 x Balanced/Unbalanced 1/4" TRS, 2 x RCA
• Outputs: 2 x Balanced XLR, 2 x Balanced/Unbalanced 1/4" TRS, 2 x RCA
