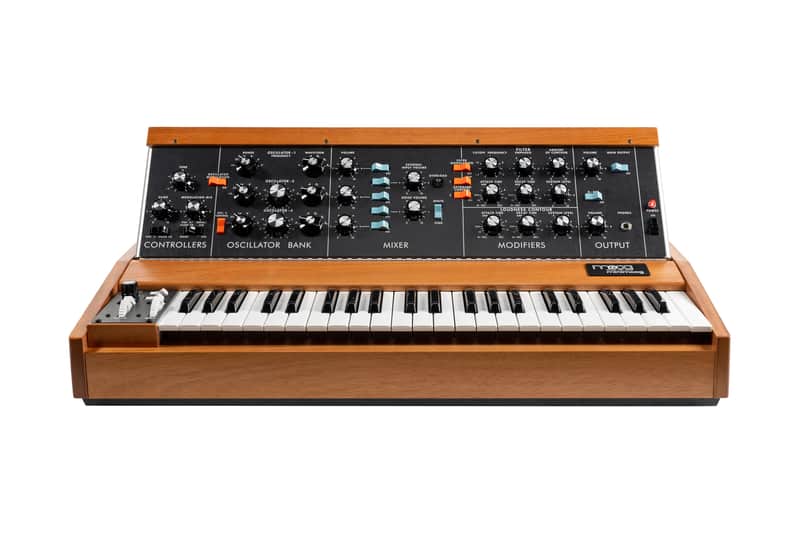

MINIMOOG MODEL D DESCRIPTION AND SPECSOriginally released in 1970, Minimoog Model D was the world’s first portable synthesizer and served as the archetype for all electronic keyboards that followed. The all-analog instrument gained acclaim for combining the colossal sound of the 1960s Moog modular synthesizers with the accessibility of pre-wired modules—meaning that it could be played instantly and intuitively with no patch cables required. It was quickly embraced by a diverse roster of performers, with artists like Herbie Hancock, Kraftwerk, Rick Wakeman, Sun Ra, Piero Umiliani, Giorgio Moroder, Bernie Worrell, and Gary Numan all shaping unique sounds and forging new musical genres using the instrument.The three-oscillator, monophonic, analog synthesizer is securely housed in a locally sourced Appalachian cherry cabinet and hand-finished aluminum chassis. Sounding as vibrant and deep as ever, its legendary low-pass ladder filter, powerful oscillators, and rich saturating mixer retain the exact component placement and through-hole design of a 1970s-era Minimoog Model D.While no changes have been made to the original sound engine or audio signal path, the 2022 Minimoog Model D includes a series of popular functional modifications that expand this legendary instrument’s sonic capabilities. These modifications include a dedicated analog LFO with triangle and square waveshapes, a premium Fatar keybed with velocity and after pressure available via top panel CV jacks with onboard trimpots, MIDI integration, and a mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob. And, for the first time in its history, the Minimoog Model D now features a spring-loaded pitch wheel with center deadband, allowing for improved playability and wild performance flourishes.SPECSNUMBER OF KEYS 44KEYBOARD RANGE F0 to C4KEYBOARD ACTION Synthesizer (Spring)NOTE PRIORITY (Low, High, Last): User SelectableSOUND SOURCES 3x Oscillators, Noise Generator and External Audio InputOSCILLATOR FREQUENCYRANGE 0.1 to 20 kHz (In Six Overlapping Ranges)OSCILLATOR STABILITY (short term) > 0.25 %OSCILLATOR WAVEFORMS Triangle, Triangle-Sawtooth (Oscillator–1, Oscillator–2), Reverse Sawtooth (Oscillator–3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse.NOISE GENERATOR White and PinkLFO RATE 0.05Hz to 200 HzLFO WAVEFORM Triangle (knob down); Square (knob up)EXTERNAL MODULATIONINPUT RANGE +10 millivolts to +2 voltsEXTERNAL MODULATIONINPUT IMPEDANCE 1MEG OhmsFILTER TYPE Voltage Controlled Low Pass (Ladder Filter)FILTER FREQUENCY RANGE 10 Hz to 20 kHzFILTER SLOPE 24 dB per OctaveFILTER KEYBOARDTRACKING ⅓, ⅔, 1:1CONTOUR ATTACK TIME 1 millisecond to 10 secondsCONTOUR DECAY TIME 4 milliseconds to >35 secondsCONTOUR SUSTAIN LEVEL 0 to 100% of Contour peakFILTER CONTOUR WIDTH 0 to 4 OctavesVOLTAGE CONTROLLEDAMPLIFIER Loudness Contour Dynamic Range 80 dBEXTERNAL AUDIO INPUTVOLTAGE +10 millivolts (min); +10 volt (max.)EXTERNAL AUDIO INPUTNOMINAL IMPEDANCE 1000K OhmsHIGH AUDIO OUTPUT Typical Voltage: 0.5 volts / Maximum Voltage: 4.2 volts (peak-to-peak)HIGH AUDIO OUTPUTNOMINAL IMPEDANCE 3K OhmsLOW AUDIO OUTPUT (30 dB below High level): Typical Voltage: 15 millivoltsLOW AUDIO OUTPUTNOMINAL IMPEDANCE 1K OhmsHEADPHONE OUTPUTVOLTAGE Maximum 0.3 voltsHEADPHONE OUTPUTIMPEDANCE 8 OhmsGLIDE RATE 1 millisecond to 10 secondsPITCH BEND RANGE (+/-) 7 semitones (minimum)AFTER PRESSURE CV OUTPUT (¼”TS) 0 to +5 volts with user adjustable trimpotPITCH CV OUTPUT (¼”TS) -3 volts to +7 volts (C=0 volts)GATE OUTPUT (¼”TS) 0 to +5 voltsVELOCITY OUTPUT (¼”TS) Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.LOUDNESS INPUT (¼”TRS) 0 to +5 volts; +5 volts = Unity Gain (Works with Moog EP-3 Expression Pedal)FILTER CUTOFF INPUT(¼”TRS) 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)OSCILLATOR PITCH INPUT(¼”TRS) 1 volt per octave of change (Works with Moog EP-3 Expression Pedal)MODULATION SOURCEINPUT (¼”TRS) Ring=Noise Send; Tip=Modulation Receive (This jack makes a normalled connection with no cable present.)TRIGGER INPUT (¼:TS) +5 volt V-Trigger Activates both Contour GeneratorsMIDI INPUT (5-PIN DIN) Note On & Note #MIDI OUTPUT (5-PIN DIN) Note On, Note #; Velocity; Aftertouch, Modwheel, Pitch-bendMIDI THRU (5-PIN DIN) Mirror of the MIDI In signalEXTERNAL POWER SUPPLY Self-switching; 100–240 volts; 50/60 Hz; <12 Watt nominal consumption. (Locking XLR-4 connector.)DIMENSIONS (with panel lowered): Width: 28.625” / 727 mm, Depth: 17.125” / 435 mm, Height: 5.75” / 146 mm.NET WEIGHT 32 lbs. / 14.5 kg.STORAGE TEMPERATURE 5F to 140F (2C to 60C)NOMINAL OPERATINGTEMPERATURE 10 – 35 C (50 – 95 F)OPERATING TEMPERATURE 10 – 50 C (50 – 122 F)IN THE BOXMinimoog Model D Analog SynthesizerPower SupplyUser's ManualPoster NewspaperWEIGHTS & DIMENSIONSPRODUCT ONLYWeight (lbs) 32.0 lbsWeight (kg) 14.52 kgImperial (in) 5.63” H x 28.63” W x 17.25”DMetric (cm) 14.29 cm H x 72.71 cm W x 43.82 cm DPRODUCT IN BOXWeight (lbs) 44.7 lbsWeight (kg) 20.28 kgImperial (in) 9.38” H x 34” W x 24.75 ”DMetric (cm) 23.81 cm H x 86.36 cm W x 62.87 cm DImport Information: Country of Origin (COO): USANote: This product does not contain any Hazardous Material/Dangerous Good as determined by the U.S. department of Transportation or International Air Transport Association, or materials under Proposition 65 notice.
Price€4,798.86
Incl. VAT
Free Shipping
Free Shipping
from Antwerpen, Belgium
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
