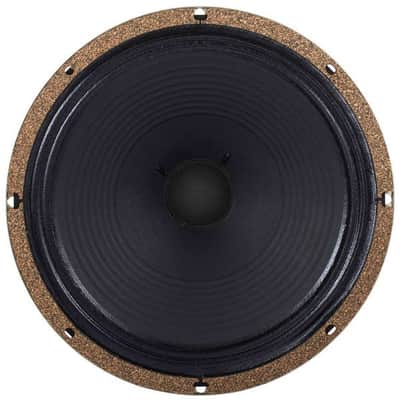

Back in the late 60s the G12H was created by fixing an ‘H’ type (heavy) magnet to the body of a G12M guitar speaker. Result: a speaker with more power and a different tonal balance: firmer bass and a more pronounced top end. So we added an ‘H’ magnet to the G12M-65 Creamback to create a guitar speaker that delivers the sonic signature of a G12H combined with Creamback levels of power handling. The result is the G12H-75 Creamback. It delivers 75-watts of power handling with ease and has unmistakeable G12H tone with a tighter low end than the G12M-65 Creamback and a punchier more dynamic high end.

The H magnet brings additional focus body and girth to the Creamback tone. It thickens single notes resulting in a highly articulate vocal character. These additional characteristics mean that the G12H-75 Creamback offers exceptional performance when used for lead guitar and sounds massive loaded into a 4×12 cab!

Features

• 12in Diameter
• 8Ω Rated impedance
• 100dB Sensitivity

Specs

Nominal diameter: 305mm / 12in

Power rating: 75W

Rated impedance: 8Ω

Sensitivity: 100dB

Chassis type: Pressed steel

Magnet type: Ceramic

Magnet weight: 1.42kg / 50oz

Voice coil diameter: 1.75in / 44mm

Voice coil material: Round copper

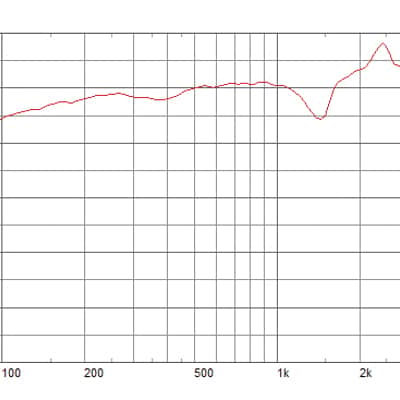

Frequency range: 70-5000Hz

Resonance frequency, Fs: 75Hz

DC resistance, Re: 6.37Ω

Mounting Information

Cut-out diameter: 283mm / 11.1in

Diameter: 309mm / 12.2in

Magnet structure diameter: 168mm / 6.6in

Mounting hole dimensions: 7.9mm / 0.31in Ø

Mounting hole PCD: 297mm / 11.7in

Number of mounting holes: 8 Chassis depth (inc gasket): 94mm / 3.67in Magnet depth: 44mm / 1.73in

Overall depth: 138mm / 5.4in

Unit weight: 4.7kg / 10.4lb
