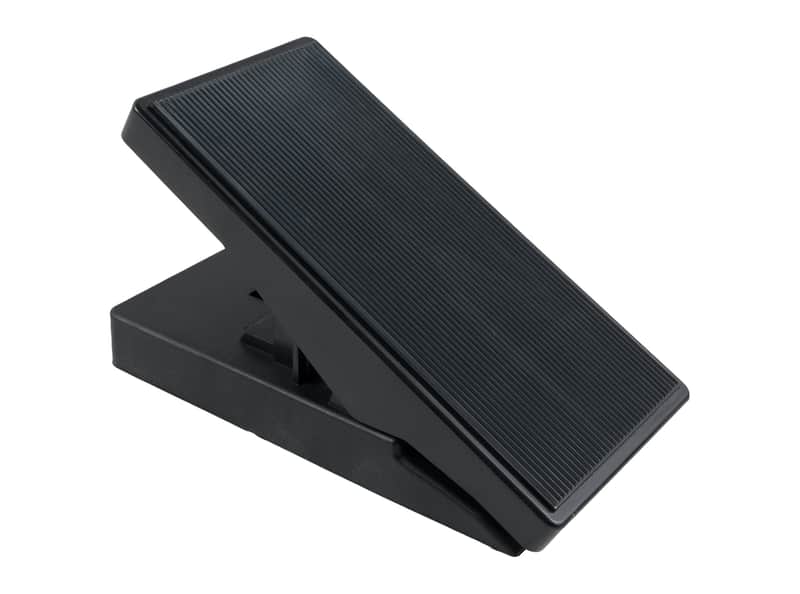

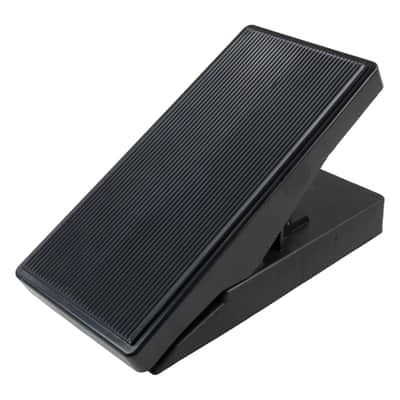

Doepfer FP5 Foot Controller

about 1m cable length, Stereo jack plug 1/4", potentiometer 10k linear (suitable e.g. for LMK4+/2+ or A-177)

Dimensions: overall: ~ 25 x 12 x 11 cm (down position) resp. 25 x 12 x 15 cm (up position)

angle of rotation: ~ 20 degrees

Pin out of the stereo jack plug

• left (ccw) terminal of the potentiometer = GND terminal of the jack plug
• middle terminal (wiper) of the potentiometers = ring of the jack plug
• right (cw) terminal of the potentiometer = tip of the jack plug

Pay attention that not the full rotating angle of the potentiometer is covered but only about 50%. If the end terminals of the potentiometer are e.g. connected to GND and +5V only a voltange range 0...+2.5V is covered ! Of course the foot control inputs of our keyboards take this special behaviour into consideration but e.g. for DIY/OEM applications one has to pay attention to the limited rotating angle.
