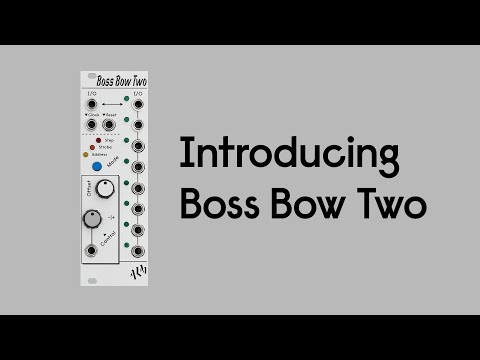

The ALM ‘Boss Bow Two’ (8HP) is an 8 way bidirectional voltage controlled switch with 3 different control modes: address, strobe, and step.
Each control mode uniquely routes signals from an input ‘I/O’ to an output ‘I/O’.
Address mode allows for instant routing manually via the offset or external control voltage, step mode sequentially advances I/O following signal at the clock input and the strobe mode combines the two, holding the addressed position until the next clock pulse.

The reset input allows for master on off switching in address and strobe modes and traditional sequencer style ‘reset’ in step mode. The control input features both an attenuverter and offset to precisely select which of the 8 I/O’s are available to be ‘switched’ in address and strobe modes and sets the direction of travel in step mode.

As it is bidirectional, audio or CV can be routed from 1 of up to 8 inputs to a single output or a single input to 1 of up to 8 outputs. The unique features and flexibility of the ‘BB2’ allow for a wide range of potential patches to be created.

• 8 HP 38 mm deep

Switch
