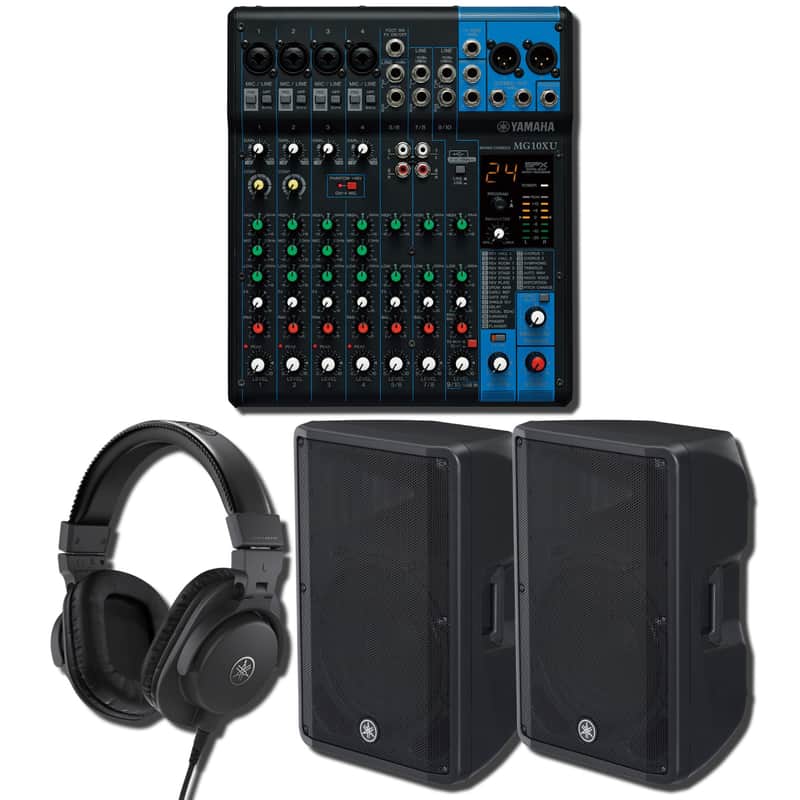

Yamaha MG10XU 10-Channel USB Mixing Console Full-Range PA Bundle with 2x DBR15 15-Inch 1,000W Powered Loudspeakers and HPH-MT5 Studio Monitor Headphones

Yamaha MG10XU Bundle: A 15-Inch PA You Can Mix Honestly and Record at the Same Time

This bundle is built for the working musician, worship tech, or mobile DJ who has to do three jobs at once: mix the room, fill it with sound, and hear the result accurately enough to record it. The Yamaha MG10XU 10-channel USB mixing console is the hub, feeding a pair of DBR15 15-inch 1,000W powered loudspeakers that reach 132 dB and 50 Hz with no subwoofer. The HPH-MT5 closed-back studio monitor headphones close the loop, giving you a flat reference to set the mix, cue sources, and check the USB recording without trusting a loud room. One purchase, three components, nothing left to source before the next set.

4 D-PRE Preamps, 1-Knob Compressors, and SPX Effects in a 4.63 lb Console

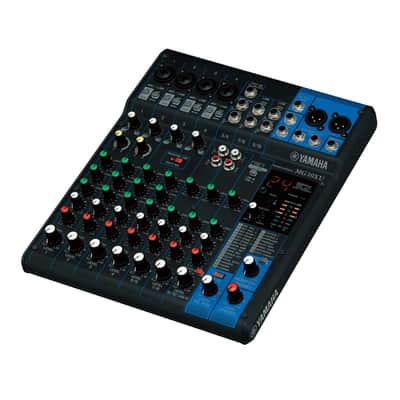

The MG10XU runs four studio-grade D-PRE microphone preamps built on a discrete Class-A circuit with an inverted Darlington pair, delivering -128 dBu equivalent input noise for clean, natural gain on vocals and acoustic instruments. Each of the four mono channels has a 1-knob compressor: one turn sets threshold, ratio, and makeup gain together, so you can tame a dynamic vocalist or a slap bass without an outboard rack. A 3-band channel EQ with a switchable 80 Hz high-pass filter, +48V phantom power, and a 26 dB pad round out the input section, and the SPX digital engine adds 24 editable programs of reverb, delay, chorus, and pitch from Yamaha's acclaimed processor. The whole console weighs 4.63 lb in a powder-coated metal chassis.

Built-In 24-Bit/192 kHz USB Interface and Cubase AI for Recording Every Show

The MG10XU is also a USB Audio Class 2.0 interface, recording the stereo mix to a computer at up to 24-bit/192 kHz and playing back from it with no extra hardware. The class-compliant connection works on Mac, Windows, and tablets with no driver install, and the included Cubase AI download gives you a real multitrack DAW for capturing rehearsals, services, and live sets. Balanced XLR and 1/4-inch TRS stereo outputs feed the DBR15 mains, while a dedicated MONITOR OUT, AUX[FX] send, and headphone output handle stage monitoring and cueing.

Two DBR15 15-Inch Mains: 1,000W, 132 dB, and 50 Hz Reach With No Sub

Each DBR15 is a 2-way bi-amp powered loudspeaker with a 15-inch woofer on a 2.5-inch voice coil and a 1.4-inch compression driver, driven by 1,000W of Class-D power (800W LF + 200W HF) to a 132 dB peak. The frequency range reaches down to 50 Hz, so a stereo pair fills a mid-size room or outdoor stage with full low-end and never asks for a subwoofer. A FIR-X linear-phase crossover at 2.1 kHz keeps transients tight and the phase aligned across the 90-degree by 60-degree coverage pattern. At 42.6 lb with dual side handles and a steel grille, each cabinet is a genuine one-person load-in.

D-CONTOUR DSP and an Onboard Mixer Make Each DBR15 a Main or a Floor Monitor

D-CONTOUR onboard DSP gives each DBR15 a FOH/MAIN preset for front-of-house duty and a MONITOR preset that, combined with the cabinet's 50-degree wedge angle, turns it into a stage floor monitor in seconds. A built-in 2-channel mixer with XLR/TRS combo inputs and an RCA jack lets a small act run straight into the speaker, and the XLR thru/mix output daisy-chains a second cabinet or a powered subwoofer. A 35 mm pole socket and three M8 rigging points (two bottom, one rear) cover tripod mounting, sub-pole stacking, and fixed installs.

HPH-MT5 Headphones: The Honest Reference That Keeps the Mix and Recording Right

A loud PA will lie to you. The HPH-MT5 closed-back circumaural headphones give you a flat, fatigue-free 20 Hz-20 kHz reference tuned in the spirit of Yamaha's NS-10 and HS monitor philosophy, so you can set the mix, ride a vocal, and check the USB recording without trusting a boomy room. Custom 40 mm CCAW drivers and 51-ohm impedance run cleanly from the MG10XU's headphone output, the moveable cups rotate flat for single-ear DJ cueing, and the 8.6 oz body and synthetic-leather pads stay comfortable through long sets. A detachable 9.8 ft cable, screw-on 1/4-inch adaptor, and nylon carry bag are included.

How the MG10XU, DBR15 Pair, and HPH-MT5 Work Together as One System

The signal chain is complete and intentional. Mics and instruments hit the MG10XU's D-PRE preamps, get shaped by the compressors, EQ, and SPX effects, and leave on balanced XLR to the two DBR15 mains for the house. The same stereo mix records to your computer over USB, and the HPH-MT5 headphones let you monitor every stage of it accurately. Set the speakers' D-CONTOUR presets for the room, use the pole sockets for tripod mains or flip one to a floor wedge, and the rig covers a full band, a worship service, or a dance floor from a single, fully-wired purchase.

For Gigging Bands, Worship Teams, and Mobile DJs Who Also Record and Mix

If you are buying your first PA, this is the rig that does everything without a second trip to the store: mixer, two 15-inch mains, and reference headphones in one order. If you are upgrading from a small powered-speaker pair or a mixer-only setup, the DBR15s add 15-inch low-end and 132 dB of headroom while the HPH-MT5 finally lets you hear the mix honestly. And if you are comparing systems on specs, the numbers hold up: 1,000W per cabinet, 50 Hz reach, four D-PRE preamps, 24-bit/192 kHz USB recording, and flat closed-back monitoring. Plug in, set your levels, and run the show.
