Master Your Feel. Refine Your Response. Elevate Your Signal.

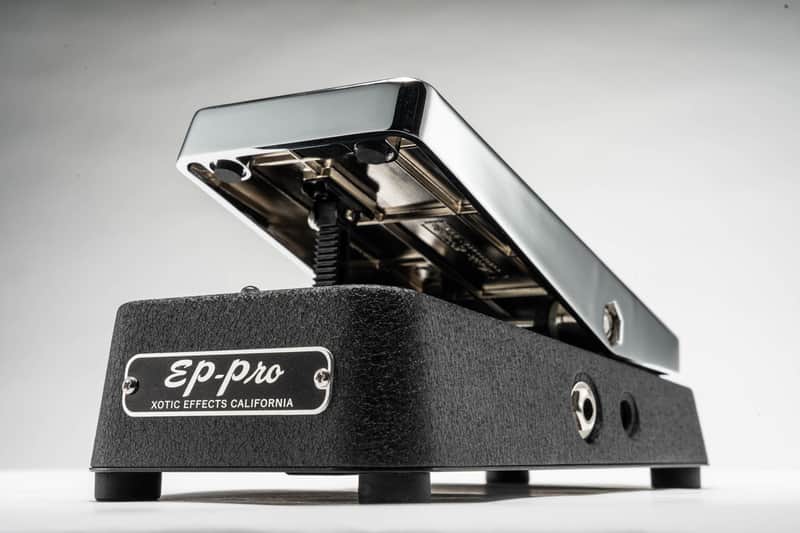

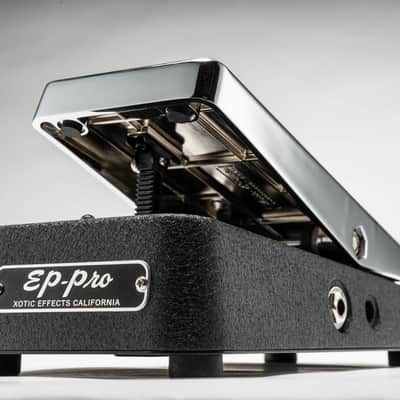

What happens when you combine the industry-standard EP Booster with a professional-grade Volume Pedal? You get the Xotic EP-Pro—a precision instrument designed to be the "always-on" heart of your signal chain.

The EP-Pro doesn't just change your volume; it transforms the way your guitar interacts with your gear. Using Xotic’s proprietary FTR (Feel, Touch, and Response) logic, this pedal restores the organic, analog "bloom" that modern digital rigs often strip away.

Key Performance Features

• Legendary EP Circuitry: Captured from the iconic Echoplex preamp used by Jimmy Page and Eddie Van Halen.

• FET-Driven Boost: Adds musical nuance and harmonic richness without coloring your fundamental tone.

• Switchable Buffer/True Bypass: Integrated DIP switches allow you to customize your signal path for complex pedalboards.

• Flexible Voltage Range: Operates from 9VDC to 18VDC for increased headroom and dynamic range.

• Small Footprint, Big Sound: Professional-grade durability in a space-saving chassis.

Four Strategic Signal Applications

The EP-Pro is a multi-tool for your tone. Based on current performance data, here are the four most effective ways to deploy it:

1. The "Front-End" Rejuvenator: Run your guitar directly into the EP-Pro before your amp. This provides a stronger, FET-enhanced signal that allows tube amps to "breathe" and react naturally to your picking dynamics.

2. The Power-Stage Sculptor: Place the EP-Pro in your Effects Loop. Use it to control overall output volume while adding that signature "sparkle" and fatness directly to the power section.

3. The Signal Anchor: Position it at the end of your drive and modulation chain (before delay/reverb). It acts as a master volume and final tone-shaper, tightening your gain stages into a cohesive, studio-quality sound.

4. The Digital Rig "Analogizer": Using Fractal, Line 6, or Neural DSP? Place the EP-Pro first in the chain. It acts as an analog interface that restores the tactile sensitivity and "touch-and-glow" response often missing from digital amp simulations.

Dimensions (W/D/H): 3.94" x 8.27" x 2.64" (100mm x 210mm x 67mm)
Weight: 2.16 lbs. (980g)
Bypass: True Bypass or Buffered (DIP Switch Selectable)
Power Requirement: 9VDC - 18VDC (Negative Center)
Current Draw: 10mA (Max)
Battery Life: ~40 Hours (Alkaline)
Input Impedance: 500k ohm
Output Impedance: 2k ohm
