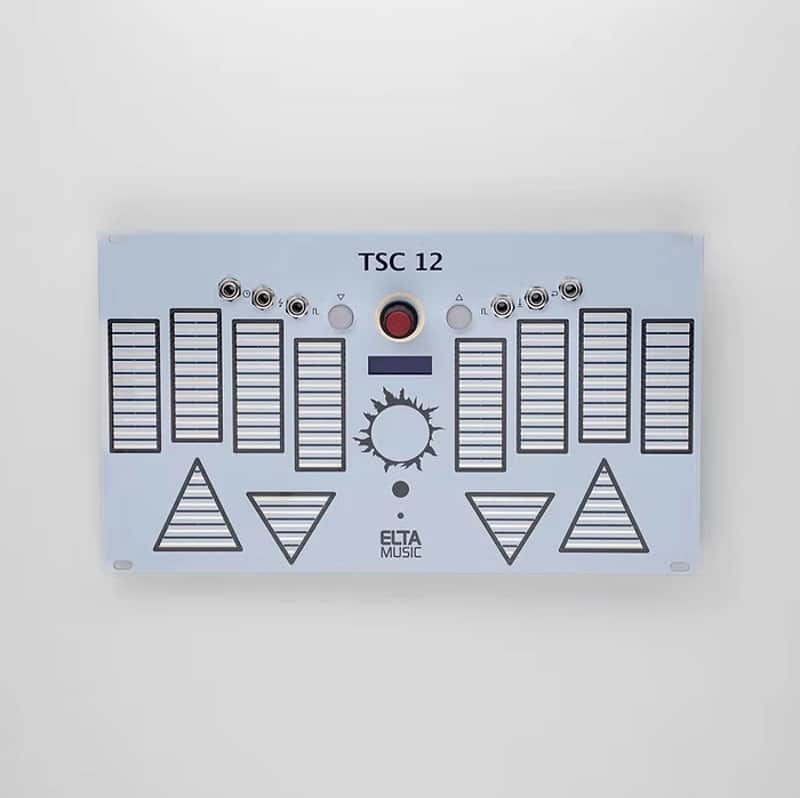

Elta Music TSC12 Eurorack Touch Controller Module (White)

The TSC-12 module, based on the Solar-42 Ambient Machine keyboard, is a performance oriented touch controller featuring 12 capacitively sensitive plates, equipped with highly accurate Volt/octave outputs, ready to connect to your modular setup also.

• External clock input. When a clock pulse is received the keyboard automatically switches to external clock source. Recommended level: 0 to +5V, though higher voltages are accepted.
• Volt/octave output, ranges over 8 octaves from 0V to +8V. By default the signal present on this output is normalized to the Volt/octave input of the VCOs (VCO A and VCO B)
• 0 to 10V gate output. By default the signal present on this output is normalized to the gate input of the envelope generators controlling the voltage controlled amplifiers of VCO A and VCO B.
• 0 to 10V gate output.
• Control voltage or Volt/octave output, ranges over 8 octaves from 0V to +8V. The signal on this output is determind by
• ‘Behaviour’ and ‘Pressure output’ parameters.
• Arpeggiato reset input. A raising edge on this input resets the arpeggiator to its first step. Recommended level 0 to +5V, though higher voltages are accepted.
