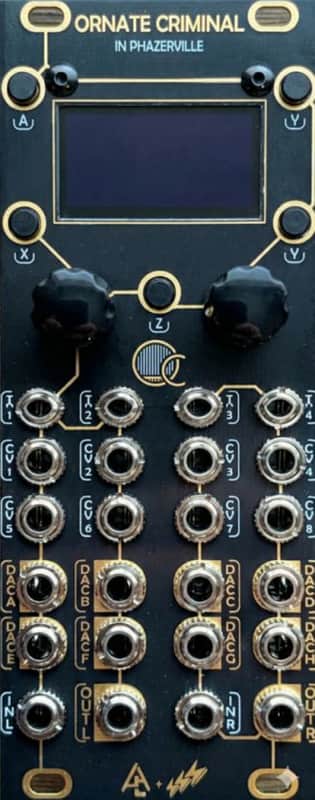

AFTER LATER AUDIO ORNATE CRIMINAL : BRAND NEW : [DETROIT MODULAR]
Free Shipping
from Royal Oak, MI
30-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Based on the OC Teensy 4.1 reference design from Paul @ PJRC and runs the Phazerville firmware from Nick and crew. This all builds on the work from the mxmxmx crew on the original Ornament and Crime. Thanks to everyone for all of the contributions.
8 CV Outs
8 CV Ins
4 Trig Ins
Stereo audio in
Stereo audio out
There are headers that connect to the MIDI expander that has 3.5mm jacks for IN/OUT and USB host/device. There is also an I2C QWIIC connector for those looking to tinker.
Please note: The first small batches of units will be limited to 4.2V on the USB host circuit. There will be a fix for this in the future but it will require soldering some 0603 parts.
Width: 10hp 12V: 120mA -12V: 20mA The power header is keyed but technically the module can be connected either way on the module side.| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
