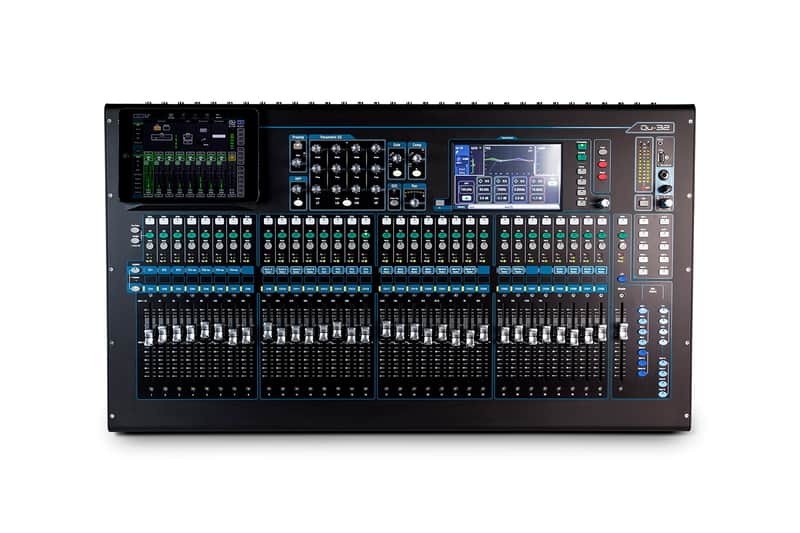

Allen & Heath QU-32C | 38 In 28 Out Digital Mixer Chrome Edition

The Allen & Heath QU-32C Chrome Edition Digital Mixer is a professional-grade sound mixer designed to deliver exceptional audio performance and usability. Equipped with 32 Mic/Line inputs, 33 motorized faders, and AnalogiQ recallable preamps, the QU-32C is built for expert sound control. Inspired by the revolutionary GLD and iLive systems, this digital mixer incorporates a seamless workflow that accommodates both novice and experienced sound engineers.

One of the standout features of the QU-32C is its Qu V1.8 Firmware, which includes automatic mic mixing, enhanced monitor mixes, and a Spectrogram tool for feedback elimination. The high contrast metallic finish controls not only elevate the mixer’s aesthetics but also ensure intuitive control during live performances. The 7-inch touchscreen provides a responsive and interactive user interface that makes navigating the mixer’s features a breeze.

The QU-32C Chrome Edition stands out in the digital mixing landscape with its superior build quality, comprehensive feature set, and enhanced control options, making it ideal for a wide range of professional audio applications, from live sound to studio recording.

Key Features

• 32 Mic/Line Inputs (TRS + XLR)
• 33 Motor Faders
• 3 Stereo Inputs (TRS)
• 24 Mix Outputs (XLR)
• 4 Stereo Groups (switchable to Mix mode)
• Up to 11 Monitor Mixes (4 mono + 7 stereo)
• 2 Stereo Matrix Outs
• 4 DCA Groups
• 4 Mute Groups
• 4 FX Engines
• 4 FX Sends / Returns
• 10 Soft Keys
• 32×32 USB Audio Interface
• DAW MIDI Control
• AES Digital Out
• Recallable AnalogiQ Preamps
• Qu-Drive direct Multitrack Recording/Playback on USB drives
• 7-inch Touchscreen
• iLive FX Library
• dSNAKE Remote Audio Port
• Automatic Mic Mixer
• Qu-Pad iPad App
• Qu-You iPhone/Android personal monitoring app
• Compatible with ME Personal Mixing System
• Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor, and delay on all Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication
• Spectrogram to aid with feedback elimination and taming room acoustics
• High contrast metallic finish controls, matching premium GLD Chrome series

Specifications

• Mic/Line Inputs: Balanced, XLR and 1/4-inch TRS jack, fully recallable
• Input Sensitivity (XLR / TRS): -60 to +5dBu / -50 to +15dBu
• Analogue Gain: -5 to +60dB, 1dB steps
• Maximum Input Level (XLR / TRS): +19dBu / +29dBu
• Input Impedance (XLR / TRS): >5k ohm / >10 k ohm
• THD+N, Unity gain 0dB: 0.0005% (-89 dBu, 20-20kHz, Direct Out @0dBu 1kHz)
• THD+N, Mid gain +30dB: 0.001% (-83dBu, 20-20kHz, Direct Out @0dBu 1kHz)
• Mix1-10 and LR Out: Balanced, XLR
• Stereo Alt Out & 2Trk Out: Balanced, 1/4 inch TRS jack
• AES Digital Output: 2 channel, 48kHz sampling rate, XLR 2.5Vpp balanced terminated 110 ohm
• Desk Mounted Dimensions (WxDxH): 33.5 x 19.7 x 7.4 inches
• Weight: 44 lbs

Package Contents

• 1x Allen & Heath QU-32C Digital Mixer Chrome Edition
• 1x Power Cable
• 1x User Manual
• 1x Warranty Card
