sE7A compact & classy condenser

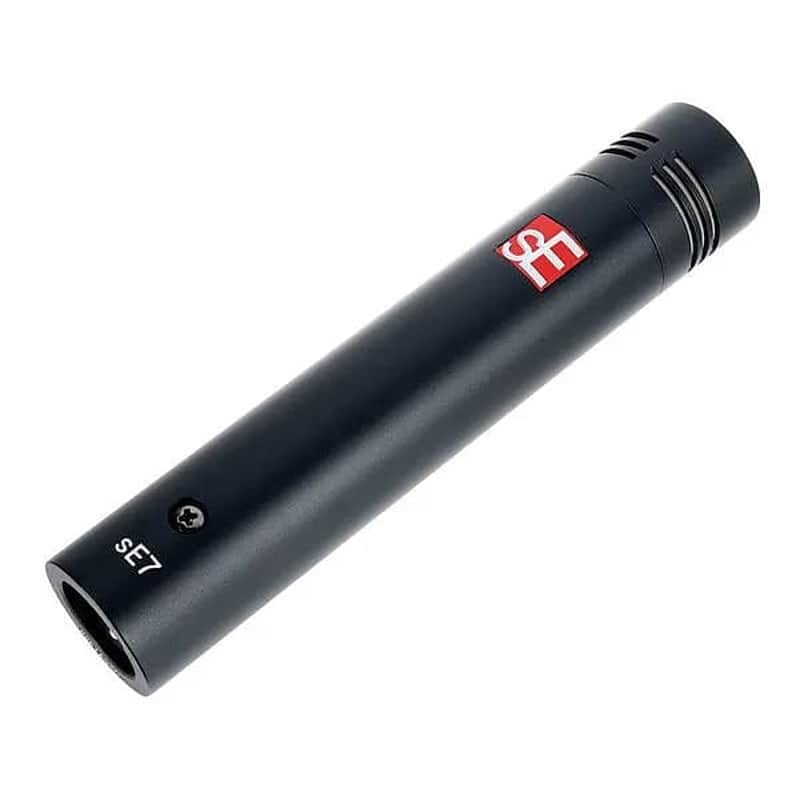

The sE7 is a high-quality back-electret small-diaphragm condenser microphone intended for a wide range of studio and live sound applications, from acoustic guitars to pianos to drums and beyond.

Recommended Use

Acoustic guitar, choir, orchestral + strings, piano, woodwinds, drums, percussion, cymbals / OH

Highlights

Optimized acoustic design, discrete class-A circuitry and a transformerless output

Clear, natural sound quality at all frequencies

Switchable -20dB attenuation pad

High sound pressure level (SPL) handling capability

Switchable low-cut 80 Hz filter

Extremely low-noise components

Specs
Components
Capsule
1 / 2" Back-electret condenser capsule
Power
Electrical impedance
<200 Ohms
Recommended load impedance
>1k Ohms
Connectivity
3-pin male XLR connector
Powering
48V Phantom Power (P48 according to IEC 61938)
Sound
Polar patterns
Cardioid
Frequency range
20 Hz - 20 kHz
Sensitivity
19 mV / Pa (-35 dBV)
Max SPL
136 / 156 dB (0 / 20 dB attenuation pad)
Equivalent noise level
16 dB
Dynamic range
120 / 140 dB (0 / 20 dB attenuation pad)
Signal to noise ratio
78 dB
Low-cut filter
80 Hz, 6 dB / Oct, switchable
Attenuation pad
20 dB, switchable
Current consumption
3.0 mA
Dimensions
Mic Diameter
23 mm (0.91 in.)
Mic length
120 mm (4.72 in.)
Mic weight
128 g (4.52 oz.)
What's in the box
sE7 microphone
mic clip (with thread adapter)
wind screen
Products inside our drum packs come without a protective pouch
