Maple neck

The Maple neck provides stability and bright tonal character.

Phat II EQ

Phat II active bass boost adds additional low-end power.

Jatoba Fretboard

Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.

B10 series bridge

The B10 bridge allows fully adjustable intonation and solid tuning stability.

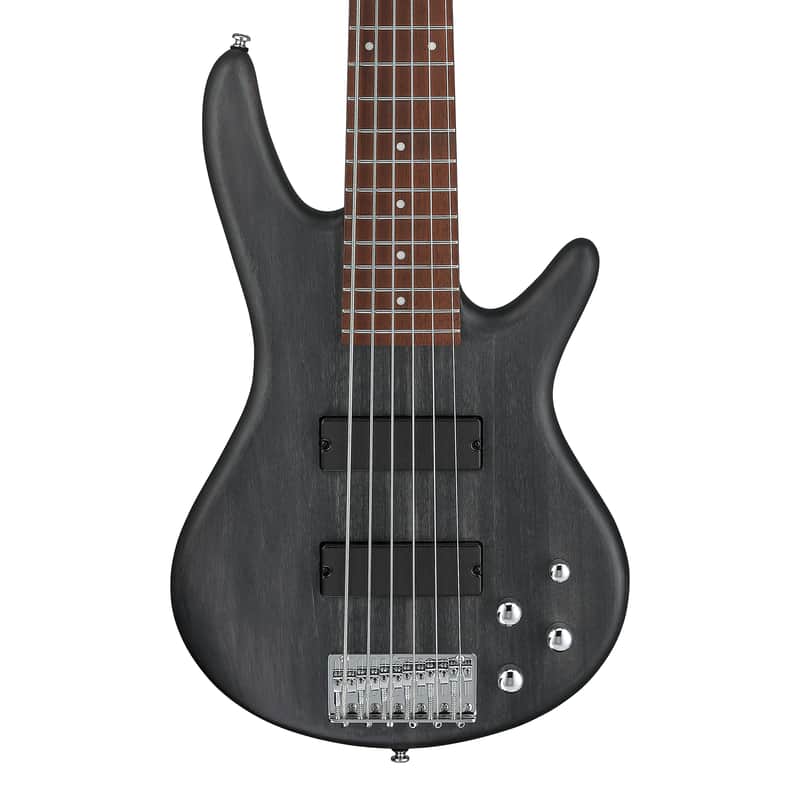

Controls

There are four knobs on this bass. The two knobs closest to the bridge are the volume knobs. The knob closest to the input jack is the tone knob, and the 4th knob, closest to the neck, is PHAT II EQ knob.

Frequency Response

The variable range of the frequency increases from 20 Hz to the high range, and the variable range decreases from the peak around 100 Hz to around 1000 Hz. The variable width of the frequency becomes large again in the high range from around 1000 Hz, and reaches the peak at around 10,000 Hz, and then becomes smaller again. The variable range around 100 Hz is about 15 dB, the range around 1000 Hz is about 5 dB, and the range around 10000 Hz is about 10 dB.

Features

• Neck Type : GSR6 / Maple Neck
• Top/Back/Body : Poplar Body
• Fretboard : Jatoba Fretboard / white Dot Inlay
• Fret : Medium Frets
• Bridge : B16 Bridge
• String Space : 16.5mm
• Neck Pickup : Dynamix H Neck Pickup (passive)
• Bridge Pickup : Dynamix H Bridge Pickup (passive)
• Equalizer : Phat II EQ
• Factory Tuning : 1C,2G,3D,4A,5E,6B
• String Gauge : .032/.045/.065/.080/.100/.125
• Hardware Color : Chrome
• Case not included

Neck Dimensions

• Scale : 864mm/34"
• a : Width : 54mm at NUT
• b : Width : 84mm at 22F
• c : Thickness : 21mm at 1F
• d : Thickness : 22mm at 12F
• Radius : 400mmR
