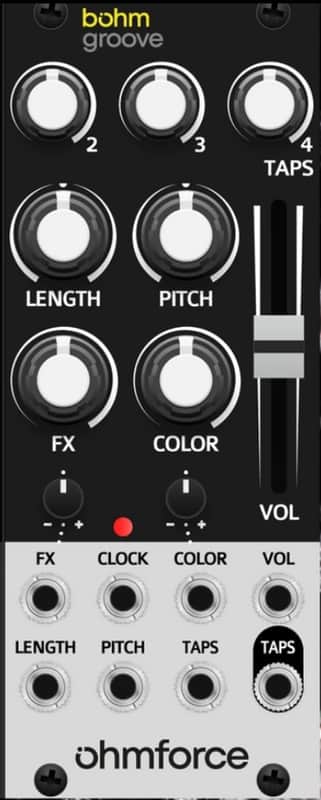

OHMFORCE BOHM GROOVE : BRAND NEW : [DETROIT MODULAR]

Right expander

Craft dynamic percussive textures with ease. Sync a secondary kick to clock divisions and fine-tune every tap’s level, pitch, and FX using intuitive controls.

Pattern & Dynamics

CLOCK - Triggers the secondary kick voice in perfect sync with your system clock.

TAPS 2/3/4 - Set individual volume levels for each sixteenth-note subdivision.

VOL - Balances the overall level of your groove layer against the main kick.

Shaping & Effects

LENGTH & PITCH - Adjust the decay time and relative tuning of each tap for rhythmic variation.

COLOR - Sculpt the harmonic texture of the groove—warm thuds to bright accents.

FX - Choose and dial in onboard processing (filters, distortion, etc.) to add character to your taps.

Specifications: General

• Width: Groove 10HP
• Height: 3U
• Depth (including connectors): Groove 26mm

Power Consumption

• +12V: Groove 20mA
• -12V: Groove 10mA
• +5V: 0mA (unused)

Audio

• Sample rate: 48kHz
• Hardware audio converters bit-depth: 24-bit
• Internal processing bit-depth: 32-bit floating point
• True Stereo Audio
• High fidelity Texas Instruments Burr-Brown audio converters
• Latency: 0.33ms

Controls

• Knobs resolution: 16-bit (65536 distinct values)

CV Inputs

• Voltage: ±5V (0..5V compatible)
• Resolution: 16-bit (65536 distinct values)

Memory

• Current model, last model variations for up to 12 models
• 32 programs of 16 steps each
• Systems settings

SD Port

• Type: microSD, SDHC class 10 or greater
• Capacity: Up to 32GB
• Format: Only FAT32 with MBR (Master Boot Record) is supported

The SD port is used to update the module firmware, store the Bohm kick models as well as user-provided wavetables and samples.
