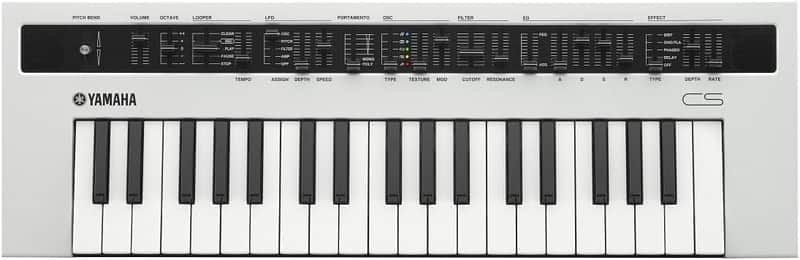

Yamaha Reface CS – 37-Key Analog Modeling Synth with Phrase Looper
The Yamaha Reface CS brings powerful analog-style synthesis into a compact, portable design. Built around a versatile analog physical modeling engine, it delivers five unique oscillator types including Pulse, Multi-saw, FM, Ring Mod, and Oscillator Sync. With 8-note polyphony, an integrated phrase looper, built-in speakers, and a premium-feel mini keybed, the Reface CS is ideal for on-the-go musicians, synth enthusiasts, and creative sound designers alike.

Features

• Analog physical modeling synth engine with five oscillator types
• 8-note polyphony with mono switch for bass or leads
• Built-in 10-minute phrase looper for jamming and songwriting
• HQ mini keybed with 37 velocity-sensitive synth-style keys
• Onboard effects including chorus, flanger, phaser, delay, and distortion
• Compact design with built-in stereo speakers and battery operation
• USB and MIDI I/O for studio and live integration

Specifications

General
- Model: Reface CS
- Type: Analog Modeling Synthesizer
- Sound Engine: Physical Modeling (Pulse, Multi-saw, FM, Ring Mod, Oscillator Sync)
- Oscillators: 5 Types
- Polyphony: 8 Notes
- Preset Memory: None
- Phrase Looper: Yes (up to 10 minutes)

Keyboard
- Number of Keys: 37
- Key Type: HQ Mini Synth Keys
- Velocity Sensitive: Yes

Effects
- Types: Chorus, Flanger, Phaser, Delay, Distortion

Connectivity
- Audio Inputs: 1 x 1/8" TRS (Aux In)
- Audio Outputs: 2 x 1/4" (Left, Right)
- Headphones: 1 x 1/4"
- USB: USB Type B
- MIDI I/O: 1 x MIDI jack (via breakout cable)
- Pedal Input: 1 x 1/4" (for FC7 volume controller)

Dimensions
- Width: 530 mm (20.87")
- Height: 60 mm (2.37")
- Depth: 174.5 mm (6.87")
- Weight: 1.9 kg (4 lbs. 3 oz.)

Power Supply
- Power Source: 12V DC power supply or 6 x AA batteries
- Battery Life: Approx. 5 hours
