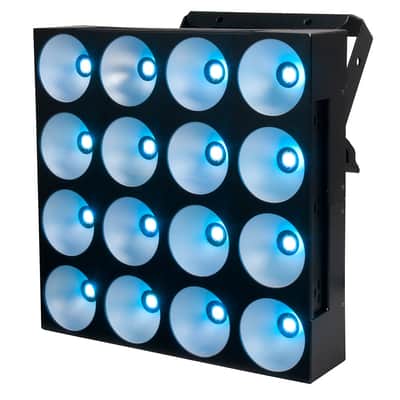

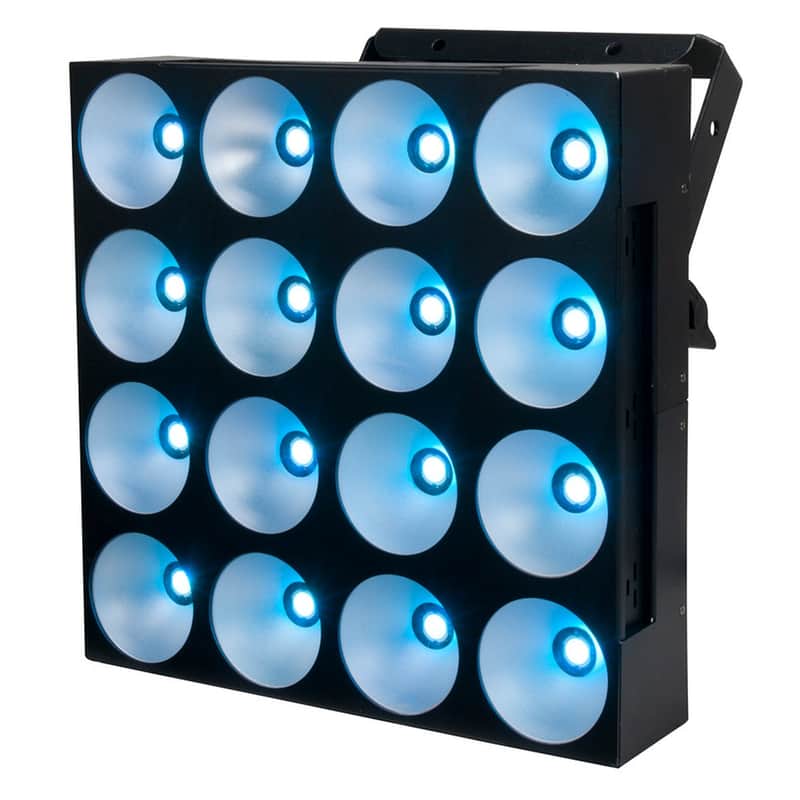

ADJ’s Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a super-charged, high output, wash fixture with smooth color mixing powered by sixteen 30W TRI COB LEDs. Dotz Matrix also has Pixel Mapping capabilities for stunning visual effects, and boasts a powerful 430 Watts with a massive 60 degree beam angle.
The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, a 4-button DMX LCD display, PowerCon AC In/Out, 5 selectable Dim Curves for stage lighting, 4 Pixel Flipping options, and 5 DMX channel modes. Dotz Matrix may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Controller.
Key Features
- 4 x 4 COB LED high output Wash/Blinder Matrix panel
- COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
- Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
- Great for Stage Lighting, Bands or Night Clubs
- 5 DMX channel modes: 3, 6, 7, 48 & 52 channel
- Individual Pixel controllable in 48 & 52 channel DMX modes
- 4x Pixel Flip options changes pixel orientation
- 4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512
- RDM Compliant (Remote Device Management)
- Built-In preset colors and programs
- Flicker Free operation (No flickering on camera)
- LED pulse and strobe effect
- Electronic Dimming: 0 - 100%
- 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
- 60-degree beam angle
- 3 & 5-pin XLR chassis mount connectors for DMX linking
- PowerCon AC IN/OUT to daisy chain power (up to 5 Dotz Matrix's @ 120V and 9 Dotz Matrix's @ 230V on one 20 amp circuit )
- 4-button DMX LCD display
- Single yoke allows fixture to be mounted
- Fan Cooled
Technical Specs
Power Draw
430W total (All LED's @ Full)
Light Source
16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
Auto sensing power supply
AC 100V/60Hz - 240V/50Hz
Dimensions (LxWxH)
13.75†x 6.75†x 14.75â€/ 345 x 170 x 370mm
Weight
18 lbs. / 7.8 kgs.
