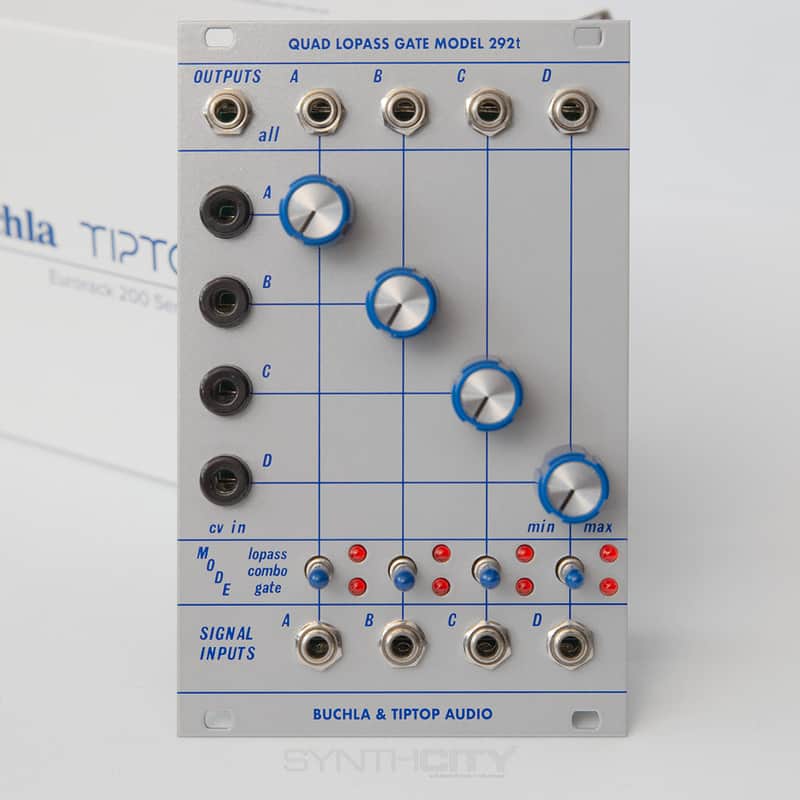

Tiptop Audio Buchla 292T Quad Lopass Gate (RHS)
This seller has not set a shipping cost for Sweden. Please contact them to ask about shipping.
Our users rate Reverb
OUTPUTS
All - Can use this output as a 4 to 1 (mono) audio mixer
A,B,C,D - Individual audio outputs. Can be used as a
quadraphonic distribution mixer
CV INPUTS
A,B,C,D - Control Voltage
inputs for each audio
channel
BLUE KNOBS
These are manual
volume/osets for each
channel
BLUE SWITCHES
These select among 3 dierent modes:
Gate - A linear VCA (LED lit)
Combo - A combination of the linear gate and the
lopass filter mode. It adds a subtle ringing decay to the
audio (No LED, both LEDs not lit)
LoPass - A LoPass filter. Gives that “snap” when
pinging it. (LED lit)
INPUTS
A,B,C,D - Individual audio inputs
* Note:
Explore using the the 257t to attenuate the an
envelope going into the 292t for a wider variety of
timbres and responses
Size: 16 HP - Depth: 45mm Power (vactrol version): +12V 87mA / -12V 36mA
Power (RHS version): +12V 91mA / -12V 85mA
