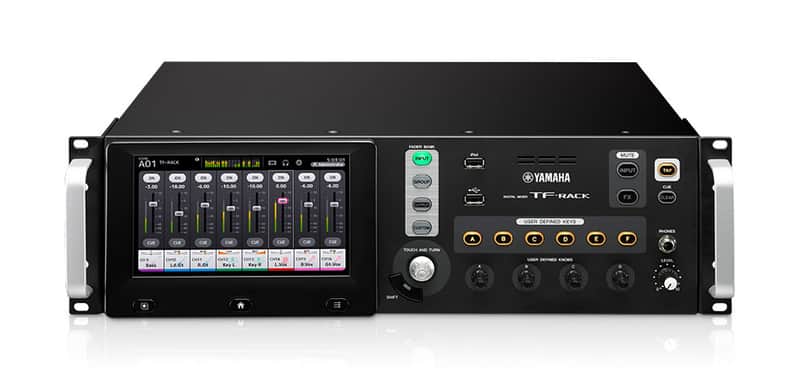

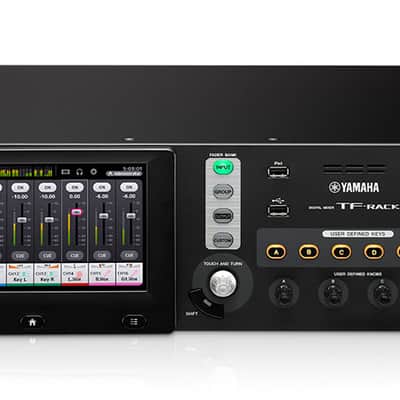

The Yamaha TF-RACK is a compact, rackmount version of the TF Series, offering the same levels of performance and groundbreaking operability. This space-saving model is accessible to a wide range of users, from beginners to seasoned engineers. The TF-RACK is an unbeatable choice when smooth, intuitive setup and operation is required in limited spaces. TF Series digital mixing consoles released in 2015 offer TouchFlow Operation™ which allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a mint level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as mintcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. The TF-RACK features 16 mic/line combo inputs and one stereo RCA line input, 8 XLR and 8 TRS phone outputs, 40 channels (32 mono + 2 stereo + 2 return), 20 Aux buses (8 mono + 6 stereo), plus one stereo and one sub bus.

• All-in-one rackmount digital mixer

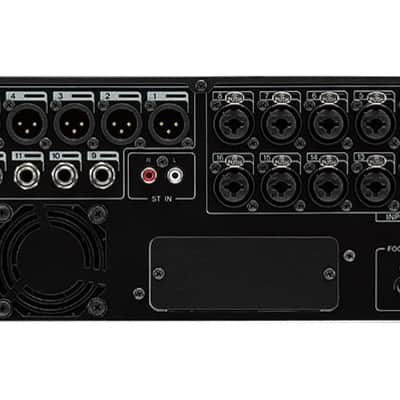

• Inputs: 16 mic/line (XLR/TRS combo) + 1 stereo line (RCA pin)
• Output: 16 (8 XLR + 8 TRS phone)
• Channels: 40 (32 mono + 2 stereo + 2 return)
• Aux Buses: 20 (8 mono + 6 stereo)

• Sampling frequency rate:
  • Internal: 48 kHz
• Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
• Fader: Resolution = 10-bit, +10 dB to –138 dB, –8 dB all faders
• Total harmonic distortion: Less than 0.05% 20 Hz–20 kHz @ +4 dBu into 600 Ohm, INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter @ 80 kHz)
• Frequency response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @ 1kHz, INPUT to OMNI OUT
• Dynamic range: 110 dB typ., DA Converter, 108 dB typ., INPUT to OMNI OUT, Input Gain=Min.
• Hum and noise level:
  • Equivalent input noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
  • Residual output noise: –85 dBu, ST master off (Measured with an A-Weight filter)
• Crosstalk: –100 dB (Measured with a –30 dB/octave filter @ 22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
• Power requirements: 100–240 V 50/60 Hz
• Power consumption: 85 W
• Dimensions (W x H x D): 480 x 132 x 409 mm
• Net weight: 9.2 kg (20.3lb)
• Accessories: Quick Guide, Power Cord NUENDO LIVE (DAW Software), Rubberstoppers (4)
