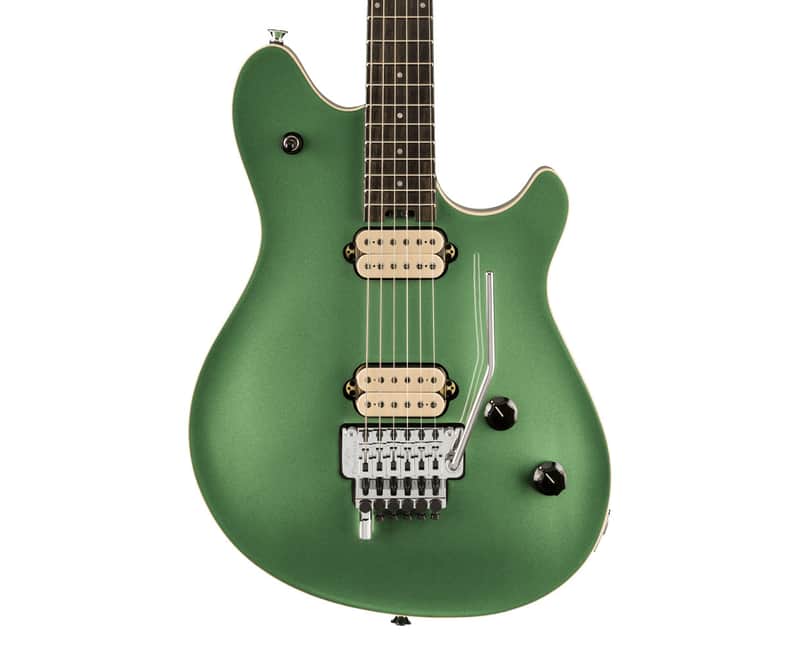

Road-tested in arenas around the world, the Wolfgang Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn maple neck. The neck is carved and rolled to Eddie Van Halen's exacting specifications and features a hand-rubbed satin urethane finish on the back. Primed for high performance, energetic riffing and blazing leads, the 12"-16" compound radius ebony fingerboard has 22 jumbo frets and pearloid dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

A pair of flagship custom-designed EVH Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.

Features

• 5" scale length
• Basswood body with arched top
• Graphite-reinforced bolt-on quartersawn maple neck
• Neck is carved and rolled to Eddie Van Halen's specifications with a hand-rubbed satin urethane finish on the back
• 12"-16" compound radius ebony fingerboard with 22 jumbo frets and pearloid dot inlays
• Convenient heel-mount truss rod adjustment spoke wheel
• Direct mount EVH Wolfgang Alnico 2 bridge and neck humbucking pickups
• EVH-branded Floyd Rose locking trem and R2 locking nut
• EVH D-Tuna
• Three-way toggle switch, EVH volume control (500K EVH Bourns Low Friction Pot) with treble bleed circuit and tone control (250K EVH Bourns High Friction Pot)
• Available in Miami Blue with black body binding, color matched headstock and black hardware

General

• Series : Wolfgang Special
• Orientation : Right-Hand
• Color : Pelham Green
• Country Of Origin : MX

Neck

• Headstock : Evh Wolfgang
• Neck Material : Quartersawn Maple
• Neck Finish : Hand-Rubbed Satin Urethane
• Neck Shape : Wolfgang Backshape
• Neck Construction : Bolt-On with Graphite Reinforcement
• Neck Thickness : .805" at 3rd & .890" at 12th Fret
• Fingerboard Radius : 12"-16" Compound Radius (304.8 mm to 406.4 mm)
• Fingerboard Material : Ebony
• Position Inlays : Pearloid Dot
• Side Dots : White
• Number Of Frets : 22
• Truss Rod : EVH-Branded with Wheel
• Truss Rod Nut : Heel-Mount Truss Rod Adjustment Wheel
• String Nut : Floyd Rose R2 Locking
• Nut Width : 1.625" (41.3 mm)
• Nut Material : Floyd Rose R2 Locking

Body

• Body : Basswood
• Body Finish : Gloss Urethane
• Body Shape : Wolfgang
• Body Binding : 1-Ply Cream
• Body Material : Basswood

Hardware

• Bridge : EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna
• Tremolo Block : Brass
• Pickup Covers : Parchment
• Control Knobs : Black Knurled with White Indicator
• Switch Tip : Black
• Hardware Finish : Chrome
• Tuning Machines : EVH-Branded Gotoh
• String Trees : Floyd Rose Retainer Bar
• Strings : Nickel Plated Steel (.009-.042 Gauges)
• Tremolo Arm : Floyd Rose 1000 Locking
• Strap Buttons : Oversized
• Electronics
• Bridge Pickup : Direct Mount EVH Wolfgang Humbucking
• Neck Pickup : Direct Mount EVH Wolfgang Humbucking
• Pickup Configuration : HH
• Controls : Volume (500K EVH Bourns Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH Bourns High Friction Pot)
• Switching : 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements

• Dimensions : 4.60x 15.30 x 42.10 IN
• Shipping Weight : 10.25 LB
• Fret Size : Jumbo
• Scale Length : 25.5" (64.77 cm)
• Shipping Length : 42.00 IN
• Shipping Height : 4.60 IN
• Shipping Width : 15.30 IN

Accessories

• Included Accessories Tremolo Arm, Hex Keys & User Manual
• Truss Rod Wrench 2.5 mm Hex
