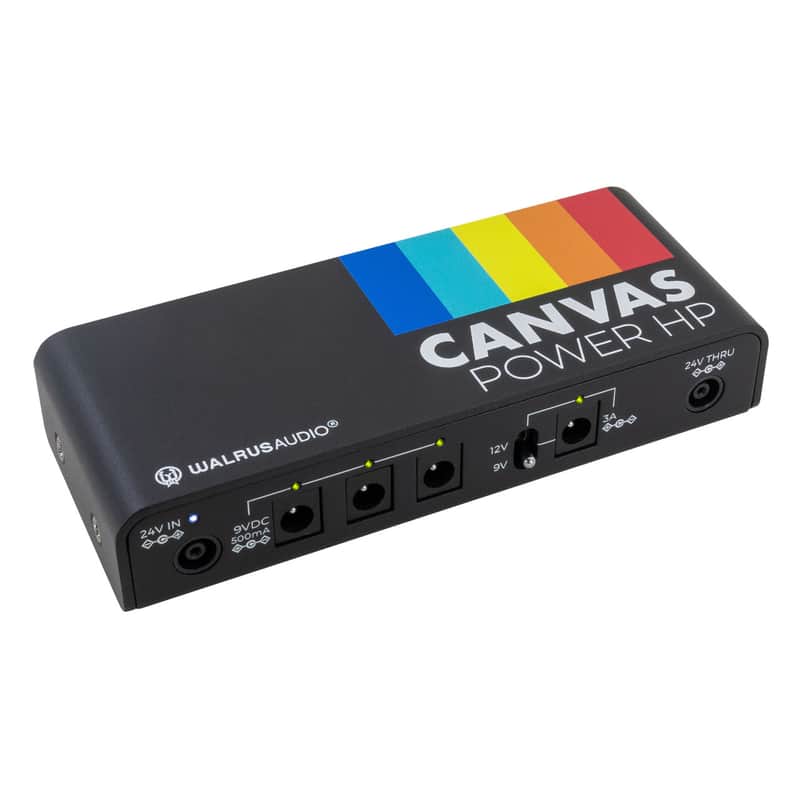

Presenting the all new Walrus Audio Canvas Power HP Link, the latest addition to Walrus's Canvas Power lineup of Pedalboard Power Supplies.

PLEASE NOTE: THE LINK VERSIONS DO NOT INCLUDE THEIR OWN POWER, THEY ARE MADE TO BE POWERED USING THE 24 LINK OUTPUT FROM ANOTHER POWER SUPPLY.

The Canvas Power HP allows you power the thirstiest of modelers and pedals with a massive 3A (three Amp, or 3,000mA) output.  This output can also switch between 9V and 12v for powering high-voltage pedals.

In addition to the 3A output, the HP also has 3 isolated power outputs delivering up to 500mA of clean power at 9v, making perfect for hybrid rigs using pedals and modelers like the Quad Cortex, HX Series, and many more.

The Canvas Power series is built using modern switch mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered ensuring they supply plenty of power with incredibly low
noise.

The Power HP is available for purchase as a standalone power supply or as a linkable unit (THIS VERSION) to another supply via 24v power link, allowing Canvas Power to grow with your power needs without adding another cable you need to plug into the wall.

The super slim 1.2 inch design allows Canvas Power Supplies to fit under nearly any pedalboard, and the included universal mounting brackets mean you don’t have to worry about your power supply staying put when you’re hustling to your next gig.

The onboard LED power meter lets you clearly see how much power consumption is remaining, and each output has its own LED indicator letting you know when it’s sending power.

What’s in the Box?
- 1 x Canvas Power Supply
- 1 x 24v Link Cable

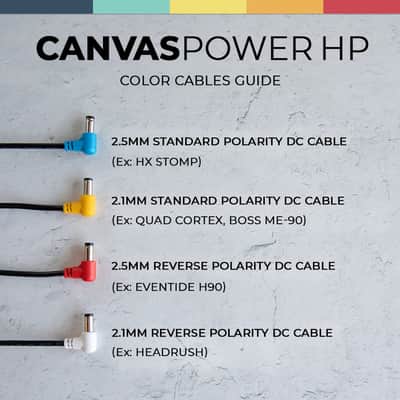

- 18” Straight to right angle DC Cable – Qty. 3
- 2.1mm Standard Polarity DC Cable (Yellow) - Qty. 1
- 2.1mm Reverse Polarity DC Cable (White) - Qty. 1
- 2.5mm Reverse Polarity DC Cable (Red) - Qty. 1
- 2.5mm Standard Polarity DC Cable (Blue) - Qty. 1
- C style mounting bracket set
- M3 Hex Key

Dimensions: 133mm x 54mm x 25.5mm (5.23in x 2.12in x 1in)
• Weight: 186g (.41lbs)
• 1 - 3A (three amp, 3,000mA) 9V or 12V variable output
• 3 - 9VDC 500mA outputs
