Features and Specifications:

Input: 1/4" Input

Input Sensitivity: 3 volts peak-to-peak maximum

Portamento: Minimum to maximum travel time

Output: CV Out Hertz/Volt Analog Pitch Control (0 ~ +8V)

Output: CV Out Octave/Volt Analog Pitch Control (+1 ~ +5V)

Output: Trigger High to Ground

Output: Trigger Ground to High (+15v)

Modes: 3 Levels of Tracking Response

Range: High and Low range of operation

Output: Envelope Control Voltage

Dimensions: 283 mm (W) x 195 mm (D) x 110 mm (H)

Weight: 2.4 kg, 4W

In the late nineteen seventies, Korg was apparently determined to open the world of synthesizers to more than just keyboard players.

Introduced in 1979 just a year after the classic MS-10 and MS-20 the MS-03 converts incoming audio signals into a range of control voltage signals. The MS-03 can drive just about any monophonic analog synthesizer, with outputs that support both the Moog/Arp/Eurorack standard of one volt per octave, and the less common Korg/Yamaha standard of hertz to volts. The unit also has two different types of gate outputs.

For users of the Moog/Arp/Eurorack standard there is a tuning and width control. The tune control is used to "tune" the MS-20 to the attached synth, and the "width" control adjust the precise range of one octave.

Korg MS-20: The circuitry of the MS-03 is similar to the Pitch to Voltage circuit in the Korg MS-20, but a comparison of the two converters shows the MS-03 is faster and more accurate than the MS-20.

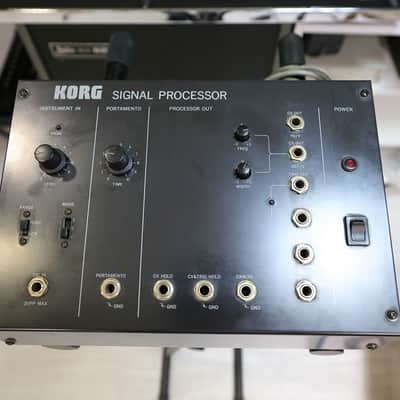

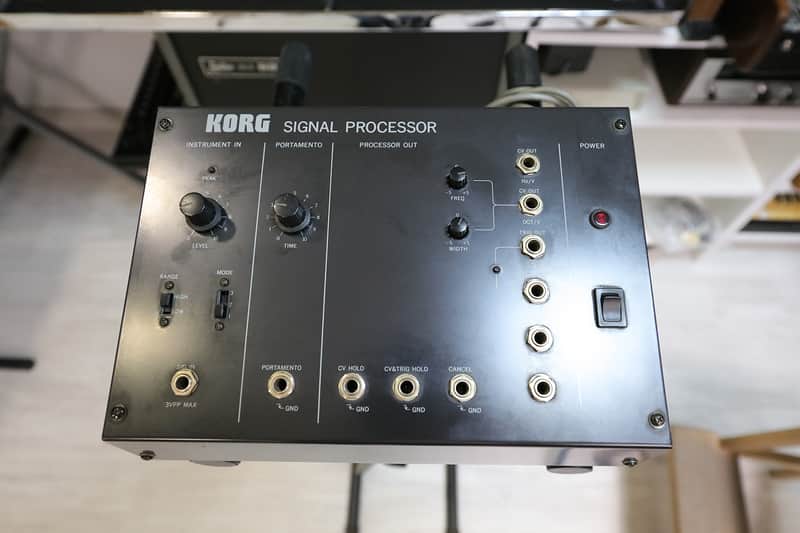

Korg MS-03: The MS-03 has many of the same controls as found on the Korg X911 Guitar Synthesizer without the synthesizer components. Features found on both units include footswitch-operated Portamento, Synthesizer "Hold" and "Cancel" functions.

This MS-03 is in perfect working condition and in excellent external condition.
This unit was checked by professional technicians.

Attention!!

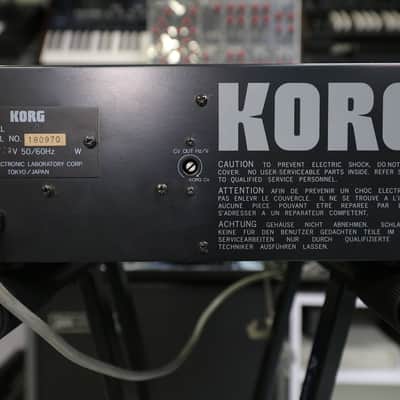

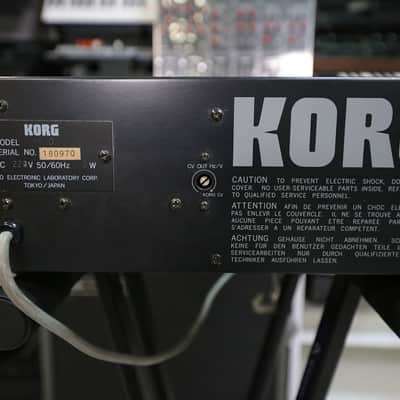

This item is 200v 50/60hz, you may need a transformer depending on your country.
