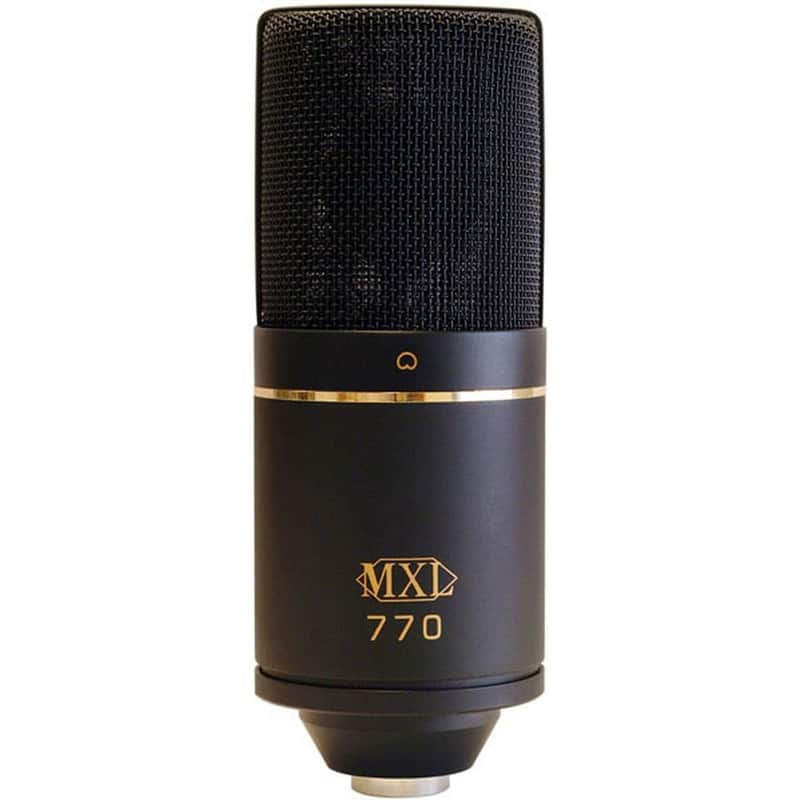

The MXL 770 gives recordings a smooth finish. This multi-purpose mic enhances all kinds of vocals and adds polish that makes instruments shine. It has a sound that’s crystal clear at the top and loaded with warmth everywhere else. It’s wired for superior sound, so throw it into the mix for your hip-hop or hard rock recordings, and the results will be outstanding.

Key Features

• Multi-purpose small-diaphragm microphone
• Warm sound with extra clarity at the top end
• FET preamp with balanced, transformerless output
• Excellent for vocals, pianos and strings
• Great for recording hip-hop and hard rock

Technical Specs

Type
Pressure Gradient
Capsule Size
0.87†/ 22mm
Diaphragm
6 micron, gold-sputtered
Frequency Response
30Hz - 20kHz
Polar Pattern
Cardioid
Sensitivity
15 mv/Pa
Impedance
150 ohms
Weight
1 lb / 453g
Attenuation Switch
0 dB, -10 dB
High Pass Filter
6 dB/octave @ 150Hz
Equivalent Noise
20 dB (A-weighted IEC 268-4)
S/N Ratio
74 dB (Ref. 1 Pa A-weighted)
Max SPL for .5% THD
137 dB
Power Requirements
48V phantom power (+/- 4V)
Size
2.3†x 6.2â€/ 59mm x 158mm
Metal Finish
Black
