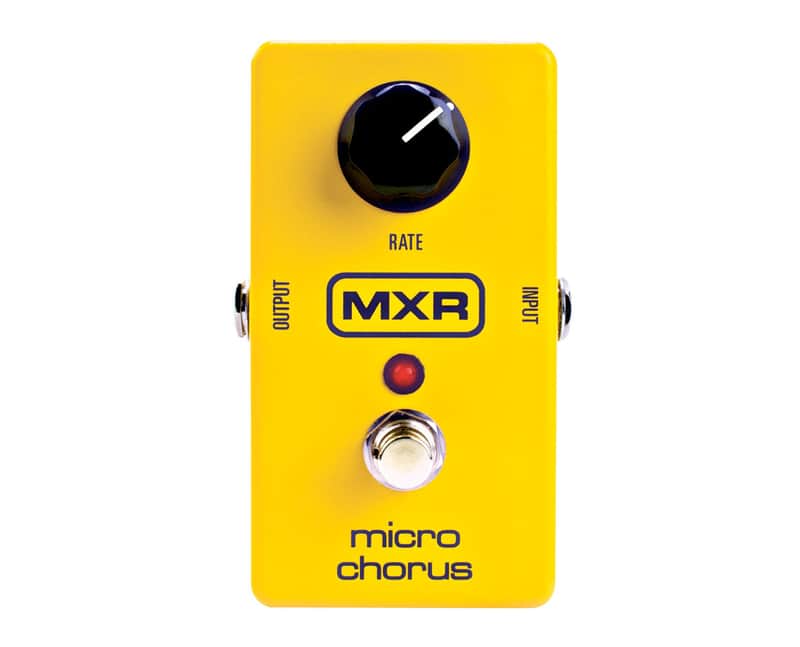

The Micro Chorus allows you to quickly dial up a stunning range of old-school bucket-brigade chorus textures with a single Rate control.

With its simple operation and stellar analog tone-the MXR Micro Chorus joins the ranks of MXR Classics such as the Phase 90, Dyna Comp Compressor, and the Micro Amp. This '80s reissue delivers a stunning range of rich chorus textures, from sparkly watery shimmers to intense rotating speaker simulation with a twist of the Rate control. The Micro Chorus is designed with old-school bucket brigade technology for warm analog tone and features true bypass for pure guitar tone when the pedal is off. Its road-worthy hardware and components are housed in a space saving Phase 90 sized box.

Features

Description

• Adds rich chorus textures, from sparkly watery shimmers to intense rotating speaker simulation
• All analog circuitry with bucket brigade technology for warm analog tone
• True bypass with LED
• Joins the ranks of MXR Classics such as the Phase 90, Dyna Comp and Micro Amp

Directions

• Run a cable from your guitar to the Micro Chorus’ INPUT jack and run another cable from the Micro Chorus’ OUTPUT jack to your amplifier.
• Turn the Micro Chorus effect on by depressing the footswitch; the red LED will illuminate, indicating that the effect is activated.
• Turn the RATE knob clockwise to increase the chorus speed towards a watery shimmer, counterclockwise for a slower rotating sound.

Specifications

• Input Impedance : 1 MO
• Output Impedance : 1 kO, 1 kHz
• Max Input Level  : -5 dBV, 500Hz
• Max Output Level : +8 dBV
• Rate Control : 0.25 Hz, 7.5 Hz
• Noise Floor* : -89 dBV
• Delay Time : 4.2 ms, 6.8 ms
• Frequency Response
  • Delayed Signal    20 Hz to 4.5 kHz
  • Dry Signal             20 Hz to 20 kHz
  • Bypass : True Hardwire
  • Current Draw : 5 mA
  • Power Supply : 9 volt DC

Power

The MXR Micro Chorus can be powered by one 9-volt battery (accessed by removing the pedal bottom plate), a 9-volt AC adapter such as the Dunlop ECB003/ECB003E, or a DC Brick power supply.

Controls

• RATE knob adjusts the speed of the chorus effect.
• FOOTSWITCH toggles effect on/ bypass (red LED indicates on).
