Disaster Area Designs SmartLoop Stereo Loop Switcher

New in box never used. Consolidating gear need to sell.

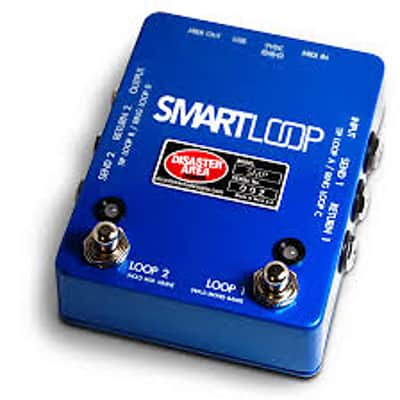

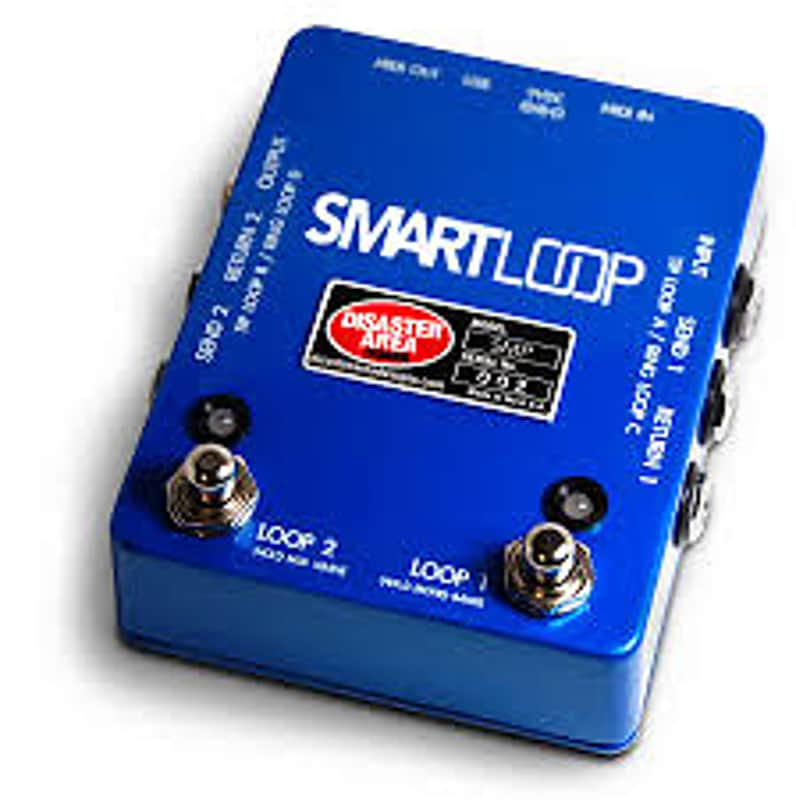

The SMARTLoop is a dual stereo bypass loop switcher, designed to allow the player to bypass two mono or stereo pedals with instant-access foot control.  DIP switches inside the SMARTLoop allow the user to re-configure the pedal for quad-mono operation.

• Stereo inputs and outputs on 1/4″ TRS (tip ring sleeve) jacks
• Dual stereo effects loops on 1/4″ TRS jacks
• Instant access to loop settings
• Loops may be bypassed or engaged using MIDI CC
• Loops may be assigned to incoming MIDI program changes using MIDI learn
• The pedal may be programmed to ignore any MIDI program
• Internally configurable to dual stereo or quad mono operation

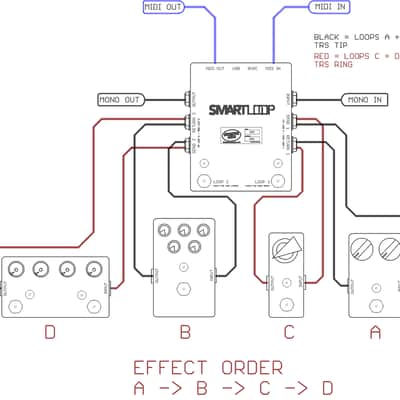

• Mono mode can be set to 4 loops in-line or 2+2 independent loops, perfect for putting pedals in front of and in the amp FX loop
• Fully passive signal path – can switch DC or control voltage
• Also works to switch balanced signals on TRS cables
• 9VDC 120mA max

All SMARTPedals share the following features:

• MIDI IN & MIDI OUT connectors
• MIDI INPUT merges data through to output
• MINI-USB port for firmware updates and feature additions
• MIDI channel selectable using MIDI CC messages
• DC 9V, center-negative power input (current varies by pedal.)
• Die-cast aluminum housing with textured or glossy powder-coat finish
• Jacks spaced to accommodate most straight and right-angle plugs (George L’s, Lava Mini-ELC, GLS Pancake, etc.)

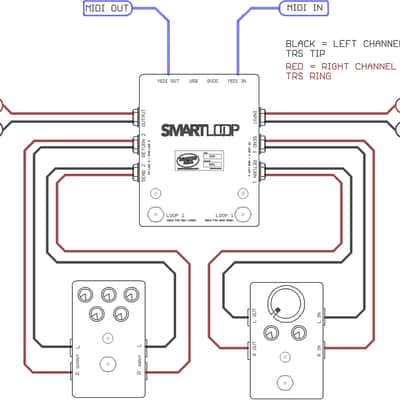

Connecting the SMARTLoop to two mono pedals requires only standard mono cables.  Connecting to stereo pedals requires stereo Y-cables such as the inexpensive Hosa STP-201RR, or our Made In USA TRS Insert Cable Kits.
