Redefining Bass with Precision

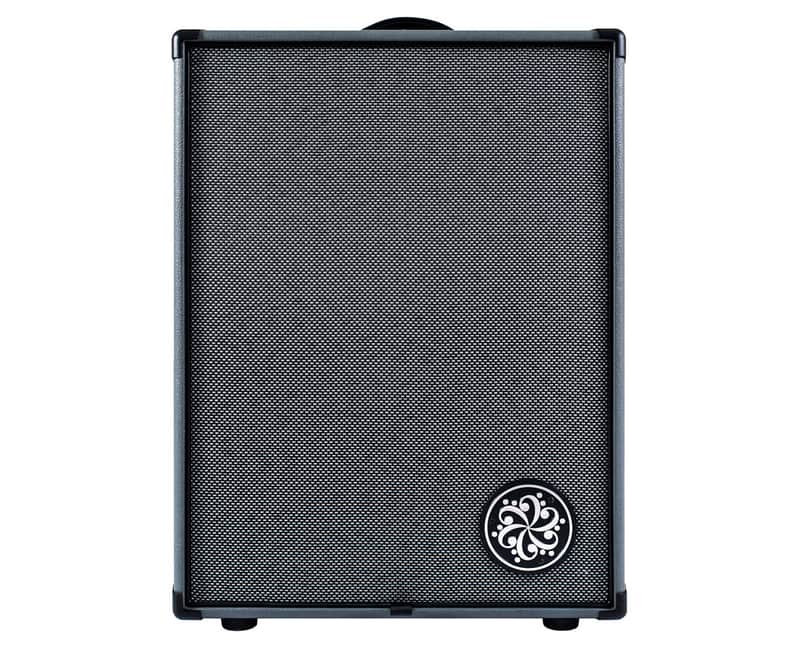

Designed for ultimate sonic quality and portability, the M Combo Series defines excellence in Analog bass tones and precision. Featuring custom-made Eminence speakers and powered by an efficient 500 W class D power module, the M Combo Series are perfect for the musician demanding premium analog character across venues, rehearsals, and home setups.

Features

Top Panel

Input

• Use This Jack To Connect Your Instrument Via A Standard ¼” Mono Cable

Headphone Output

• Connect Your Headphones And Enjoy The Analog Cabinet Emulation.
• Passive/Active
• Use This Push-Button Switch To Change From Passive To Active Mode. If Your Bass Is Active It Can Have A Hotter Signal Making The Amp To Distort Early (Feel Free To Use If Such Additional Distortion Is Desired).

Compression

• Controls The Amount Of Dynamic Compression. The Make Up Gain Is Adjusted Automatically.

Drive

• Controls The Amount Of Distortion That The Microtubes Engine Will Deliver. Press To Select The Drive Mode: Off/Vintage Microtubes /Microtubes B3k.

Blend

• Use This Knob To Mix Between The Clean Signal And The Distortion Signal.

Level

• Controls Microtubes Engine’s Output Volume.

Low

• ±12 Db @ Low Shelf

Low Mids

• ±12 Db @ 500 Hz/1 Khz
• Press To Select The Frequency

Hi Mids

• ±12db @ 1.5 Khz / 3 Khz
• Press To Select The Frequency

Treble

• ±12db @ High Shelf

Master

• Use This Knob To Control The Overall Volume Of The Combo. Press For Mute.

Back Panel

Ac Power On/Off

• Power On The Combo Beast.

Ac Socket

• Use This Connector To Feed Electric Power To The Amplifier. 100 – 230 Vac, 50-60hz. Set The Voltage Selector Switch To The Correct Position Before Turning On The Amplifier!

Tweeter

• Turn The Tweeter On/Off.

 Pre/Post

• Select Between The Unprocessed Clean Di And The Processed Signal.

Di Output

• Use This Connector To Send Your Signal To The Console, Mic Preamp, Interface, Etc.

Ground Lift

• Use This Control To Lift The Ground Of The Xlr Output. If You Are Experiencing Ground Noise In Your Di Signal, Try Changing This Control.

Aux In

• Connect This To The Headphone Output Of Your Laptop, Cellphone, Mp3 Player, Etc. The Aux In Signal Is Fed Only To The Headphone Output.

Return

• Use This Input To Receive The Signal From Your Outboard Gear.

Send

• Use This Output To Send The Signal To Your Outboard Gear.

Footswitch

• Use To Connect The Darkglass Super Intelligent Footswitch, Intelligent Footswitch Or Midi Footswitch Using A 1/4″ Mono Instrument Cable.

External Speaker

• Use This Connector To Connect The Amplifier To An External Speaker Cabinet. The Speakon Combo Jack Allows For Speakon Or ¼” Speaker Cable Operation. The Minimum Load Impedance Is 8 Ω. The Minimum Power Rating Must Be 250 W.

Technical Details

Woofers

• Custom Design Eminence Speaker

Horn

• Eminence Tweeter

Power Rating Rms

• 500 Watts

Dimensions

• Width: 46.4 Cm / 18.2″
• Height: 61.1 Cm / 24″
• Depth: 39.5 Cm / 15.5″
