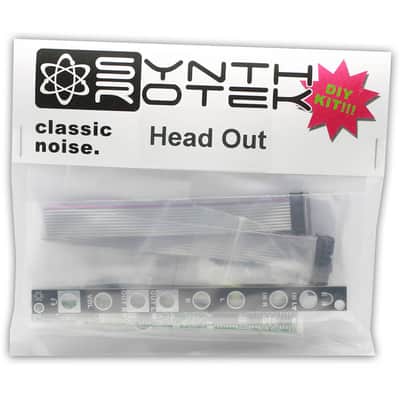

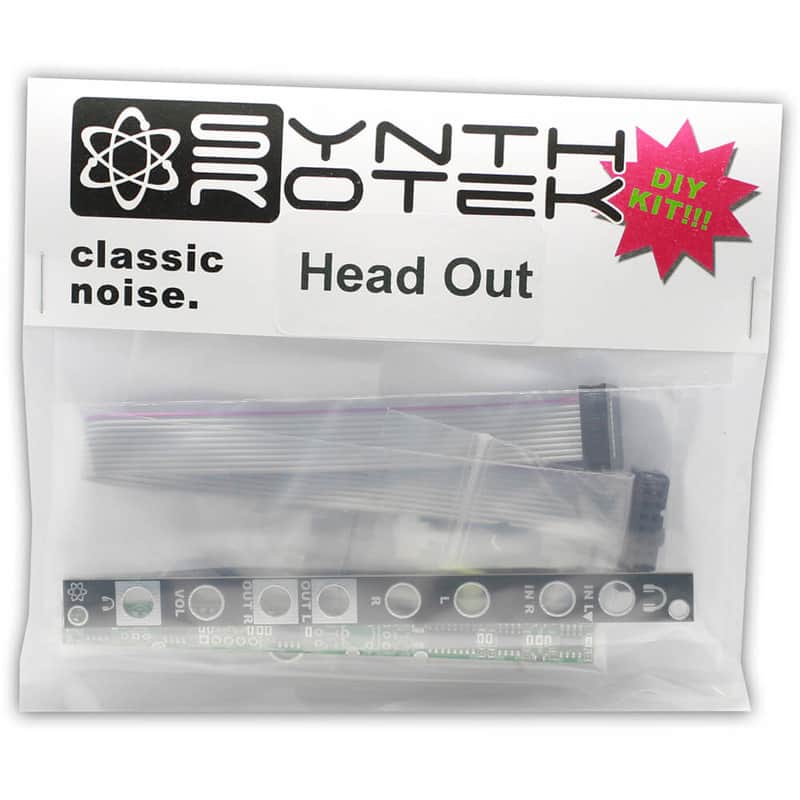

Synthrotek Head Out - Headphone Output Eurorack Module DIY Kit

Please note: This is a kit and requires assembly. You can find assembly instructions at the Synthrotek website.

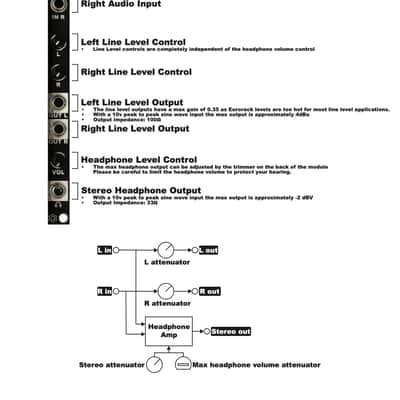

The Head Out module has stereo line level outputs and a stereo headphone output. The line level L and R outputs have attenuators, and are intended to accommodate hifi/pro audio equipment. The headphone output utilizes a 2164 VCA-based circuit, allowing for plenty of volume.

The headphone circuit operates independently of the line level circuit, so all outputs can be used simultaneously.

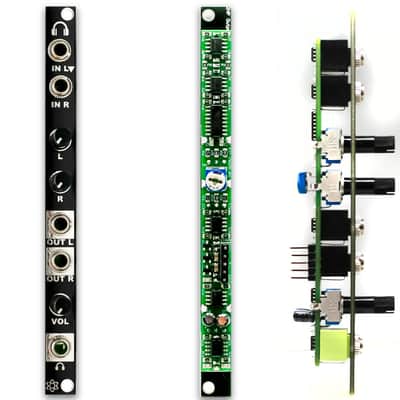

This is a "finish it yourself" kit. The board comes pre-populated with all the surface mount components already.

Features:

• L and R input (L input normals to R input)
• L and R line level outputs with attenuators
• Attenuation trimmer (to set max output of stereo headphone jack )
• Stereo headphone output with attenuator

Specifications:

• Module width: 2HP
• Module depth: 25mm
• Current draw: +12V: 40mA, -12V: 38mA
