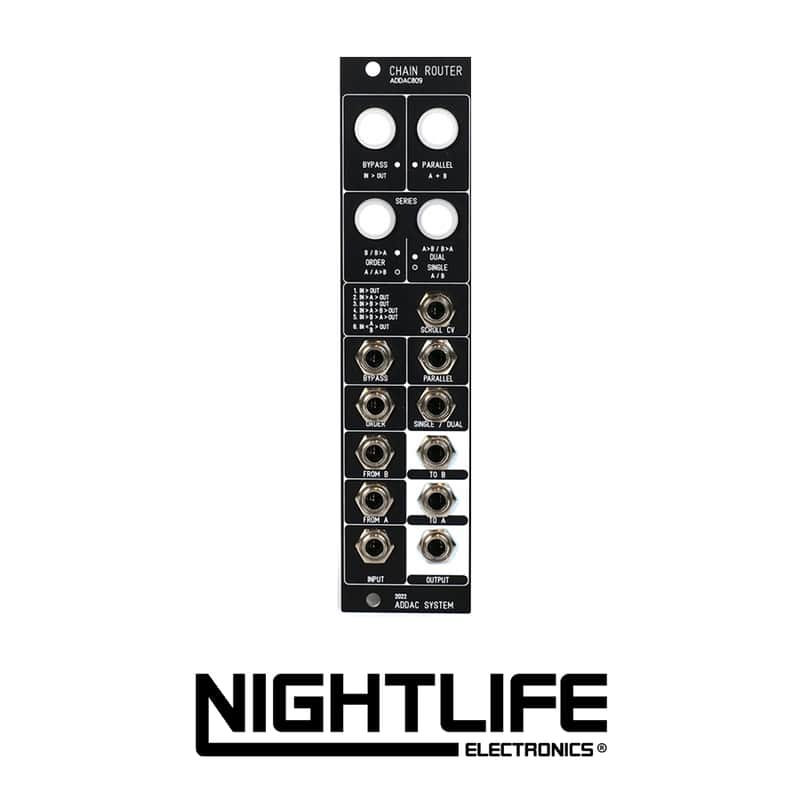

ADDAC System ADDAC809 Chain Router - Black
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
ADDAC809 is a dynamic CV operated I/O router that allows one source (Audio or CV) to be routed through 2 different chains (of one or more modules) before being sent to an output. Six routing patterns are allowed:
1. IN > OUT
2. IN > CHAIN A > OUT
3. IN > CHAIN B > OUT
4. IN > CHAIN A > CHAIN B > OUT
5. IN > CHAIN B > CHAIN A > OUT
6. IN > CHAIN A > OUT CHAIN B
A practical example is to have an audio source, a delay and a looper. And the question: should the delay be placed before or after the looper? Sometimes you may need the delay to be before the looper as you may want to sample the audio with the delay or sample the pure audio source and apply the delay afterwards.
This small utility module solves this issue on the fly without having to repatch anything.
Width: 12HP
Depth: 55 mm
Power: 80mA +12V / 30mA -12V
Manual
