DIY J.Haible Living VCO 2022 Black
Only 1 left
Grab it before it's gone
Our users rate Reverb

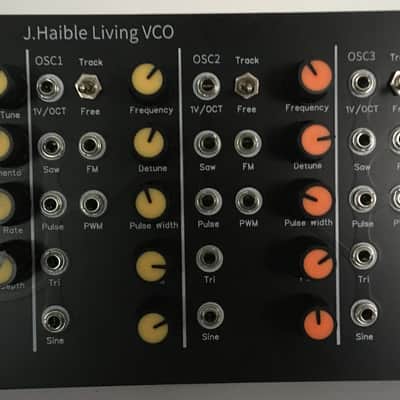

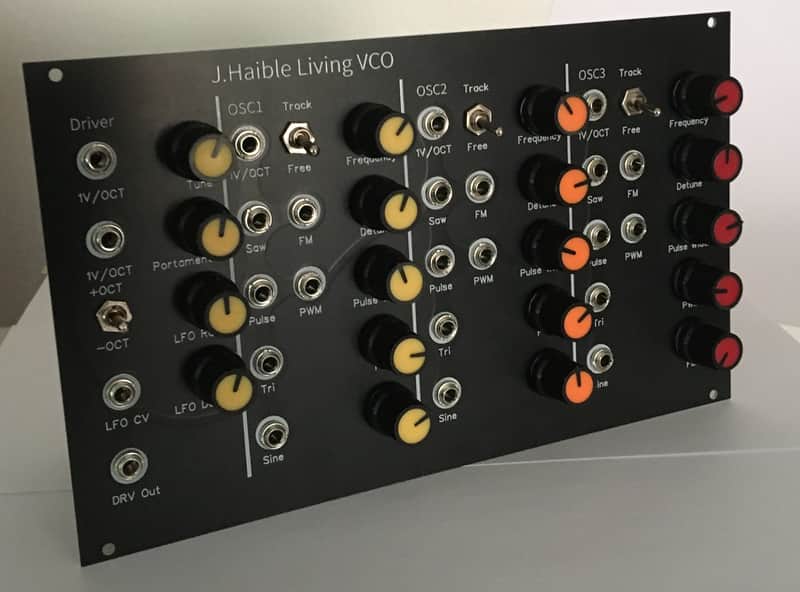

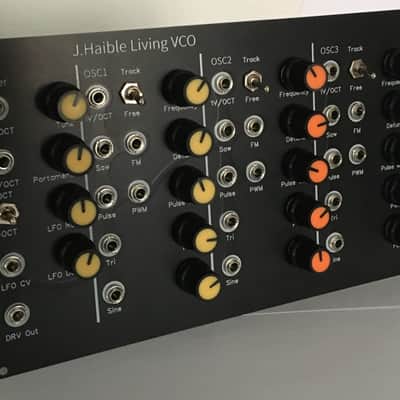

This is a 42HP Eurorack module, Triple VCO providing Saw, Pulse, Triangle and Sine outputs with a driver board providing Portamento and Vibrato(Labeled LFO) controls.
This module is very deep compared to many other eurorack modules. You need a case that has depth clearance of at least 70mm. Eurorack power cables are included.

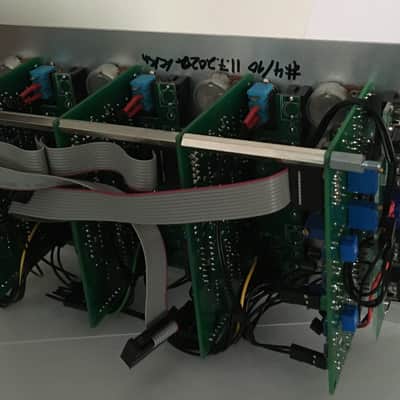

This DIY build is based on PCBs designed by Barcode and LogicGate in 2014. Other auxiliary boards and the front panel are my own designs.
The CA3046 transistor arrays used on voice cards are loosely matched, so each module will work within similar frequency range and tracking. SMD Tempco resistor is mounted underneath the transistor array.
The oscillators are pretuned to 20Hz at the bottom setting. Instructions for further tuning included.
There is a commercial version of this module available from Random*Source: randomsource.net/haible/eurorack#living_vcos
