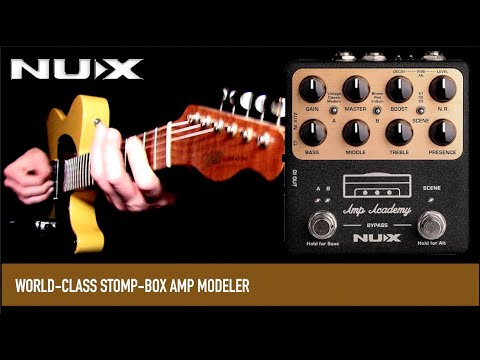

WORLD-CLASS STOMP-BOX AMP MODELER.
Nowadays the Amp-less approach is quickly becoming a trend for modern musicians—like guitarists who appreciate a variety of pedals and amps, but don’t have the luxury of a roadie crew to lug all of them around.

Amp Academy inherits NUX TSAC-2K (White-box Amp Modeling) algorithm which delivers the sound and feel of world-class tube amplifiers in a super-portable stomp-box enclosure. And, its huge headroom and dynamic range is a pedal-friendly platform.

GO DIRECT FOR VARIOUS APPLICATIONS
On Stage:
Add Amp Academy to any pedal chain and connect to a mixer or PA system for excellent tone, control, and flexibility during live performance. Monitor through the in-house monitoring system or in-ear monitors. For a dedicated personal on-stage monitor, connect your pedalboard to a powered FRFR speaker.

In Studio:
Connect Amp Academy directly to a recording interface for excellent guitar tone, instantly, without the need to set up an amp or microphones.

At Home(Silent Practice):
Connect headphones or monitors directly to Amp Academy’s 1/8” PHONE OUT to experience immersive classic amp tones in a natural sounding room without an amp.

AMP MODELS & IR
Amp Academy features 6 legendary amp models like Vintage(Fender Twin Reverb), Classic(Fender Vibro King), Modern(Mesa Boogie Mark I), Brown(Friedman HBE), Red(Mesa Boogie Dual Rectifier), and Iridium(Bogner Uberschall). The iconic TSAC-2K (WHITE-BOX algorithm) Amp Modeling offers you realistic amp feeling and fast playability response.
Note: You can choose back amp models on editor software.

A/B AMP FOOTSWITCH & SCENE FOOTSWITCH
The A/B foot switch lets you switch from clean amp style to crunch amp style immediately. Besides that, the SCENE footswitch can toggle SCENE1, SCENE2, SCENE3 sequentially. You can save your custom block engagements with 3 scenes, it offers you all the live application needs.

DRUM & LOOP
Besides Amp-less application, silent practice is often a must-have for modern musicians. Amp Academy editor offers Drum & Loop function to let you enjoy playing guitar in more places more often.

MIDI IMPLEMENTATION
You can assign the MIDI signal with Amp Academy with editor, and implement MIDI through USB port.

FEATURES

• Pro-Level Amp Modeling with Bias Tweaking.
• 7 Independent moveable signal blocks with Send/Return effect loop.
• Intuitive operation and editor software.
• 1024 samples IR resolution and 3rd party IR loader slot with auto format editor.
• Versatile application scenes with independent 1/4” & XLR IR outs.
• Ultra-low system latency(1.2ms) and premium powerful NXP RT DSP(1GHz).
• Comes with Insert Y-cable for send/return effect loop.
• USB recording interface, firmware update, AmpAcademy™ editor software.
• Ultra-wide dynamic range: 110dB

SPECIFICATIONS

• Input Impedance: 1MΩ
• Output Impedance: 1kΩ
• Dynamic Range: 110 dB
• Sampling Rate: 48kHz / 32-bit
• Power：9V DC (NOT INCLUDED)
• Current Draw: less than 300mA
• Dimensions: 105mm(L) x 115mm(W) x 58(H)mm
