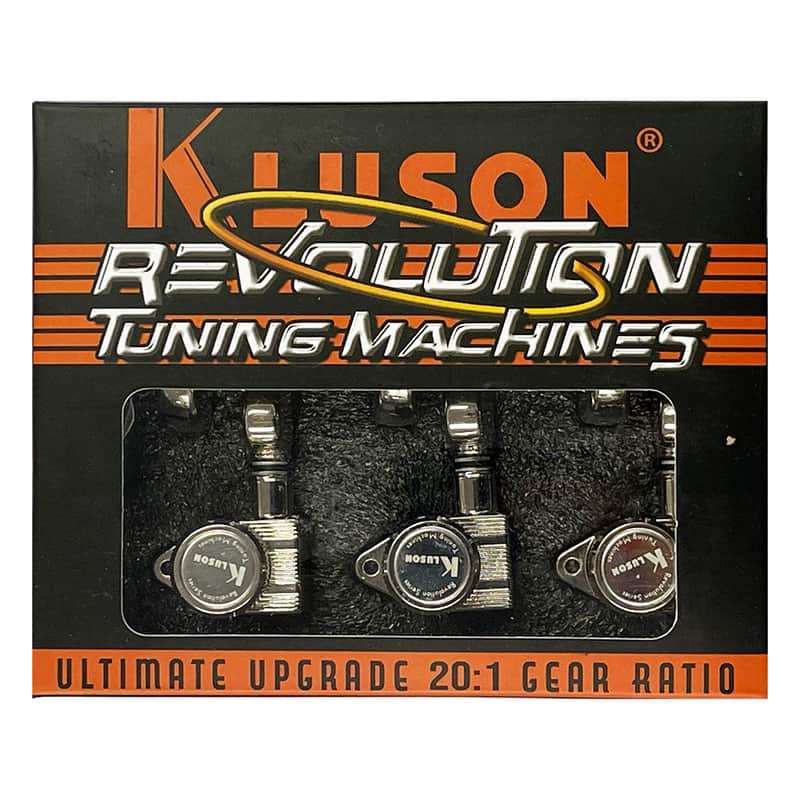

Kluson 3+3 Revolution Series Locking E-Mount Tuners Nickel KREL-3-N
14-Day Return Policy
Enjoy peace of mind with your new gear
Our users rate Reverb
Kluson's® new Revolution E-mount tuning machines are die-cast construction and have the brand new 20:1 gear ratio and are available in both locking and non-locking formats. This all-new Kluson® design incorporates today's standard 10mm peghole mounting with a single screw at 6 O'clock low in conjunction and screw-in bushing and washer.
Kluson® designed this new tuning machine type to fit many of the electric and acoustic instruments manufactured post 1970, giving you the option in many cases for a non-modification required upgrade in both performance and appearance. This new Revolution E-mount tuning machine set is available in black, chrome, gold and nickel finishes and all mounting hardware needed is included.
Specifications:
- Peghole requirement = 25/64 in. (10mm) peghole
- Mounting Screws = 1 screw located at 6 O\'clock low
- Bushing = Screw in type hex head
- Housing Material = die-cast zinc
- Gear Ratio = 20:1
- Gears = Steel worm gear / brass ring gear
- Locking mechanism = Wheel on back of housing
- String Post Diameter = 6mm
- String Post Length = 1 3/32 in. (27.8mm)
- String Post hole Height = 29/32 in. (23mm) from housing back
| Condition | Brand New (New) Brand New items are sold by an authorized dealer or original builder and include all original packaging.Learn more |
|---|---|
| Brand | |
| Model |
|
| Finish |
|
| Categories | |
| Made In |
|
Product safety information may be available here.
