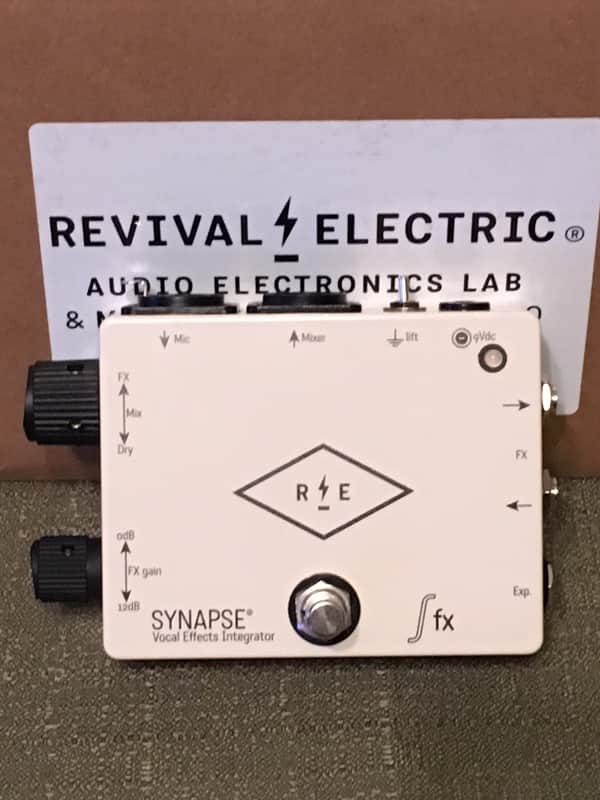

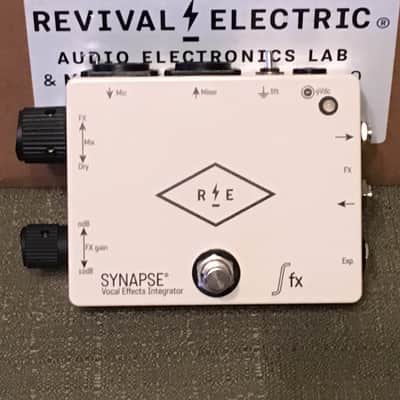

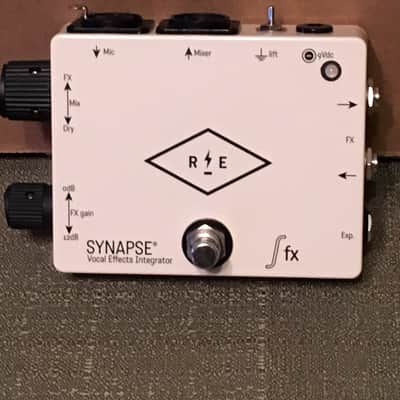

Revival Electric Synapse Vocal Effects Integrator

This is an incredible pedal which allows you to run your vocal Mic through your whole guitar effects pedalboard or any single effect of your choosing; shoegaze with your vocals. This pedal was used for a few specific projects and the results were mind blowing! It is just removed from being brand new; however, it does have a small nick on one of the corners. This affects nothing and can barely be noticed.

“THE SYNAPSE VOCAL EFFECTS INTEGRATOR IS DESIGNED TO INTERFACE A DYNAMIC LO-Z BALANCED MICROPHONE WITH UNBALANCED GUITAR EFFECTS PEDALS. ITS COMPREHENSIVE CIRCUIT PROPERLY CONVERTS THE LOW BALANCED SIGNAL TO COUPLE WITH EXTERNAL FX UNITS, WHILE MAINTAINING ORIGINAL SIGNAL INTEGRITY.” – Revival Electric

SPECIFICATIONS

I/O

• Dynamic Microphone Preamp

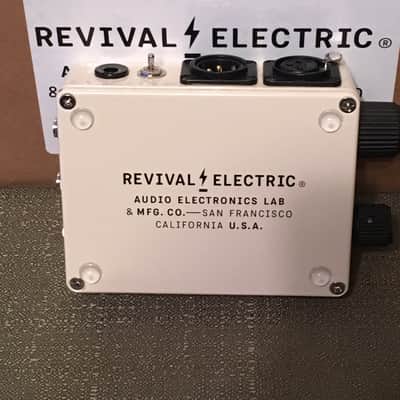

• Input XLR In/Out (Active Balanced)

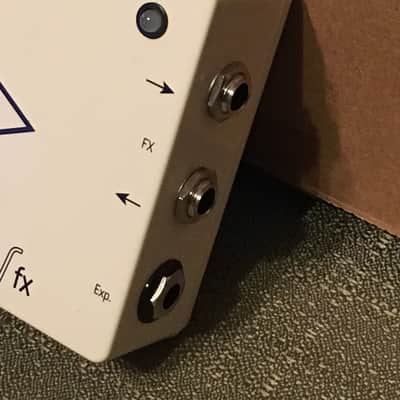

• ¼” Unbalanced Phone Jacks Send/Return Loop

Performance

• THD < 0.01%
• Flat Frequency/Phase response
• Noise < -100dBV Awtg

Controls

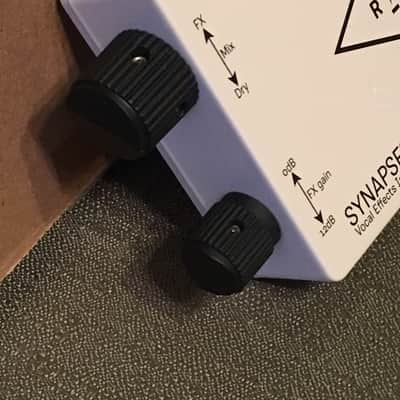

• Mix pot blends Wet/Dry signal
• Boost pot/ adds 0-12dB of boost only to the loopBlend
• Pot/Expression pedal jack* (contact for mod instructions for use with Roland EV-5 or similar)
• Ground lift switch

Power

• -9vdc Negative tip 100mA
• 2.1mm DC jack (Boss style)
• Bi color LED (Green=Loop Active, Red=Loop off

Dimensions

• 6”x4”x2”
• 1.5lbs
