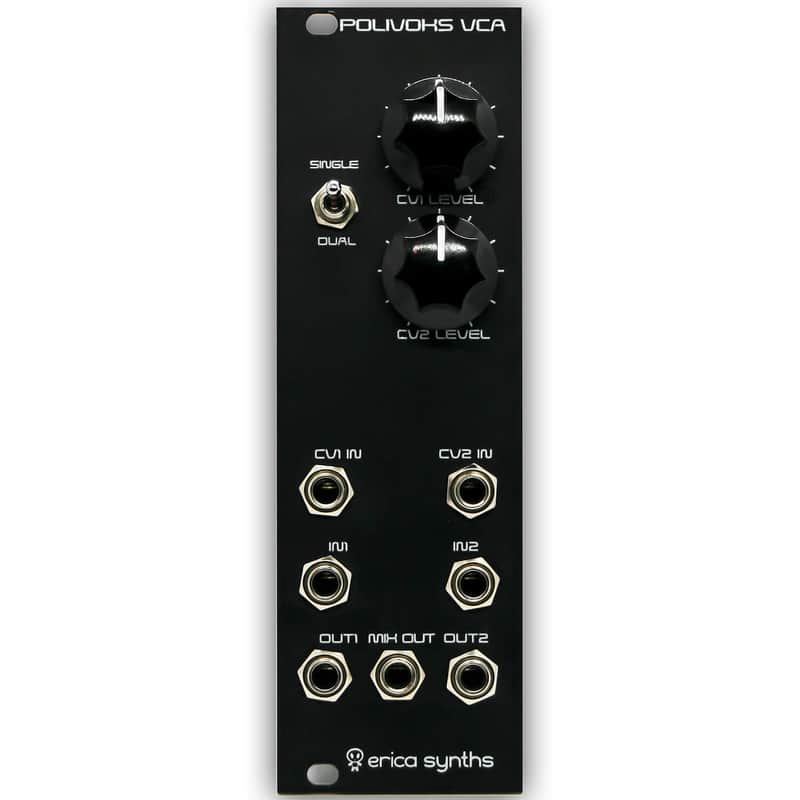

Erica Synths Polivoks Dual VCA II Kit

Erica Synths DIY Polivoks-inspired VCA is 35mm deep, skiff friendly, has solid mechanical construction and doesn’t require wiring.

The Full Kit has all the components needed for the module, including ICs, knobs, power cable, etc.

Features:

• Single or Dual VCA mode
• CV level adjustment for each VCA
• Summed audio output (lower signal gain, though)
• Skiff-friendly design

The Polivoks VCA has a distinctive architecture – two differential opamp-based VCAs in series, each for LFO and ADSR control over signal amplitude independently. Control voltage to attenuation behavior of this VCA is nonlinear and not logarithmic. It is kept authentic to the response of original Polivoks. Most parts of the VCA have been improved to achieve compatibility with eurorack signal and CV standards, higher dynamic range, better reliability, lower noise, accept higher signal levels, keep consistent behavior, self-tuning of two internal offsets and higher linearity, but the heart of it is kept the same. We also redesigned audio signal path, so that you can use it as two independent VCAs or two VCAs in series as in original Polivoks, plus summed signal output.

Technical specifications:

• VCA gain: 1.2
• CV level: -10V…+10V
• Attenuation@0V CV: 80dB
• Panel width: 8HP
• Module depth: 35mm
• Power consumption: 24mA@+12V, 18mA@-12V
