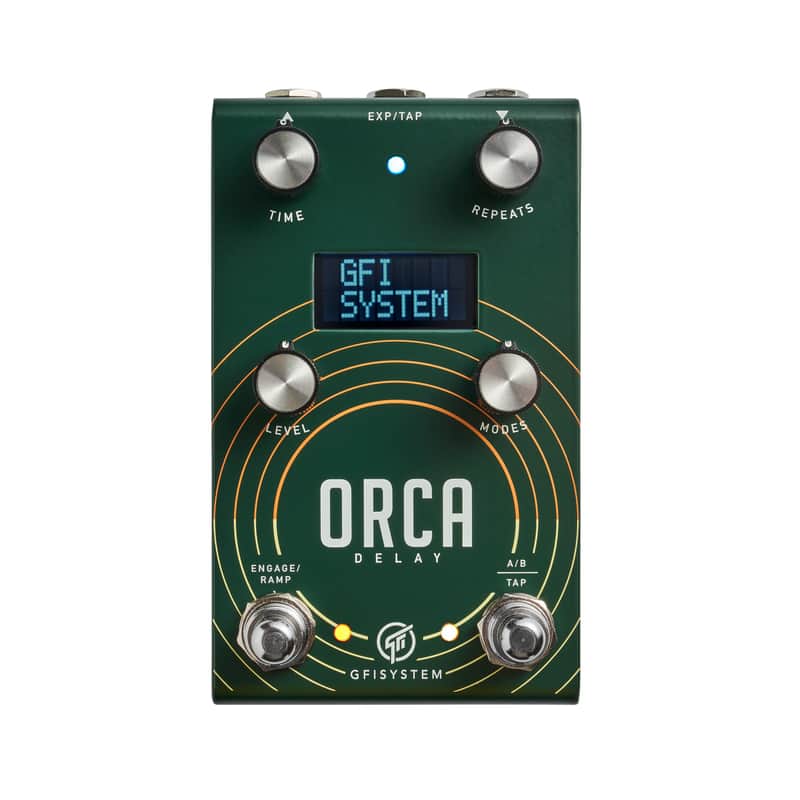

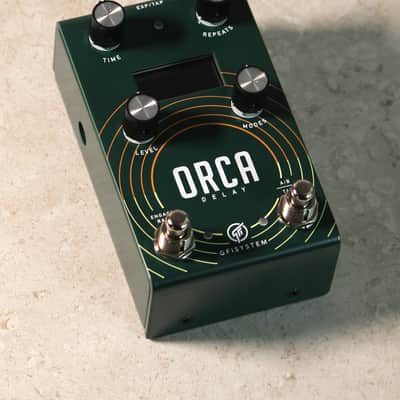

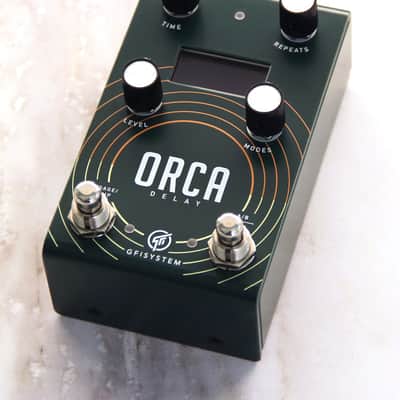

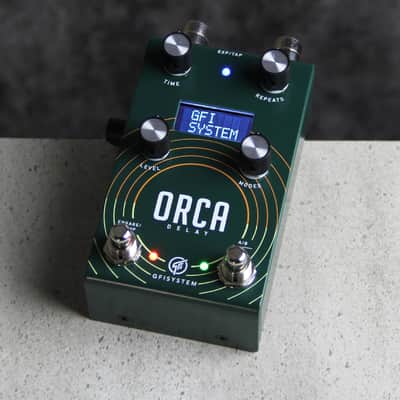

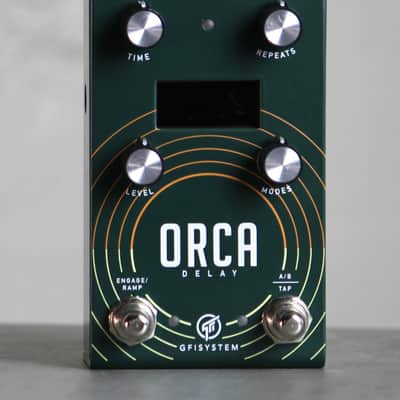

Orca packs four quintessential GFI System delay algorithms into a compact pedal that is straightforward and easy to use. Intuitive user interface coupled with an LCD screen make it a breeze to navigate through Orca’s vast sonic palette and features.

Input/Output
Orca supports both mono and stereo input/output. Mono connection is made using standard TS patch cables while stereo connection is made via TRS patch cables (a splitter-Y cable may be needed).

External control
A multi-purpose jack provides connection to an expression pedal or tap-tempo pedal.
Expression pedal input enables expressive control over delay parameters while external tap-tempo can be used for remote tempo control.

Algorithms

• Digital (max delay time : 1 second)

• Tape (max delay time : 1 second)

• Diffuse (max delay time : 1 second)

• Ambiental (max delay time : 840 milisecond)

_____________________

• 4 select delay algorithms.

• 2 presets

• 4 knobs with button

• Intuitive interface with LCD screen.

• Mono / Stereo input and output.

• Expression pedal and tap-tempo input.

• Momentary action supported.

Specifications:

• Input impedance    : 1 MOhm.

• Output impedance : 1K Ohm.

• DAC / ADC resolution : 24 bits.

• Current consumption : ~110 mA.

• Weight : 0.6 Kg (1.6 lbs).

• Dimension : 12 (L) x 7.2 (W) x 5.5 (H) cm

• Power source : 9VDC (negative center).
